Modern ATMOS wood gasification boilers bring a new perspective on wood burning. By gasification, the reverse combustion of wood, they achieve high efficiency and low fuel consumption with great heating comfort. The hot layer of wood coal, which is formed during gasification in the combustion chamber and which works as a filter, prevents the escape of unburned gas and unused energy into the atmosphere. ATMOS boilers are thus not only economical, but also environmentally friendly. Simple operation, long burning time and an exhaust fan make ATMOS boilers top products on the European market.
Wood burning boilers
-
Wood gasification boilers – Drevoplyn
Standard
![Wood gasification boilers – Drevoplyn]()
Power range: 20 – 150 kW
Wood length: 330 – 730 mm- exhaust / pressure fan
- gasification nozzle
- cooling loop against overheating
- automatic shutdown of the boiler after the fuel has burned out
-
Wood gasification boilers – Generator
Special
![Wood gasification boilers – Generator]()
Power range: 15 – 70 kW
Wood length: 250 – 730 mm- exhaust fan
- gasification nozzle
- cooling loop against overheating
- automatic shutdown of the boiler after the fuel has burned out
- large ceramic application chamber
- ceramic spherical space
-
Wood gasification boilers – Dokogen
Deluxe
![Wood gasification boilers – Dokogen]()
Power range: 19 – 50 kW
Wood length: 330 – 530 mm- exhaust fan
- gasification nozzle
- cooling loop against overheating
- automatic shutdown of the boiler after the fuel has burned out
- large ceramic application chamber
- ceramic spherical space
- tube heat exchanger for higher efficiency
Accessories
-

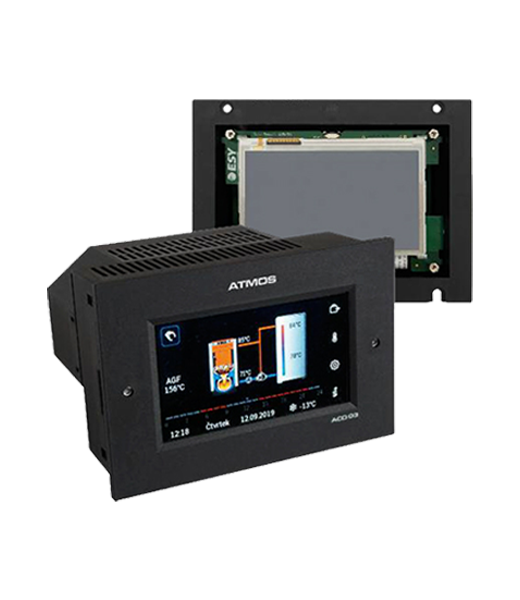

Equithermal control ACD 03/04
It is designed to control the hot water system of a heated building. Control of the controller is simple and intuitive thanks to the touch screen. The controller contains functions for direct control of the boiler, boiler circuit, up to three heating circuits, domestic hot water, solar, etc …
![Equithermal control ACD 03/04]()
- heating of up to three heating circuits
- domestic hot water heating
- solar heating
- optimal charging / discharging of storage tanks
- automatic switching of operation of two heat sources (boilers)
- complete operation of the boiler, including the exhaust fan
look for more -

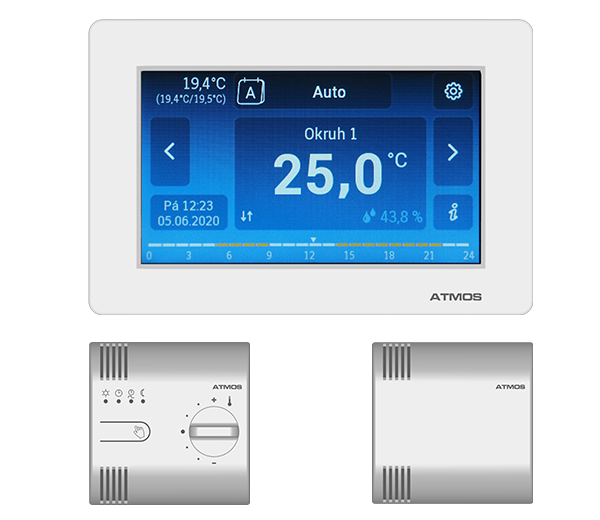

Room units for equithermal control ACD 03/04
For optimal and economical heating of your building, we recommend you to purchase one of our room units ARU5, ARU10 and ARU30 with a touch screen as an accessory (for each heating circuit) for a better possibility to regulate the heating system.
![Room units for equithermal control ACD 03/04]()
look for more -

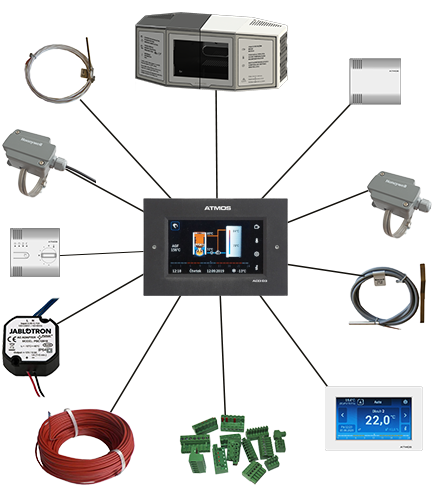

Optional accessories for equithermal control ATMOS ACD 03/04
Optional accessories that can be purchased in addition to the already created kits for equithermal control ATMOS ACD 03/04
![Optional accessories for equithermal control ATMOS ACD 03/04]()
look for more -

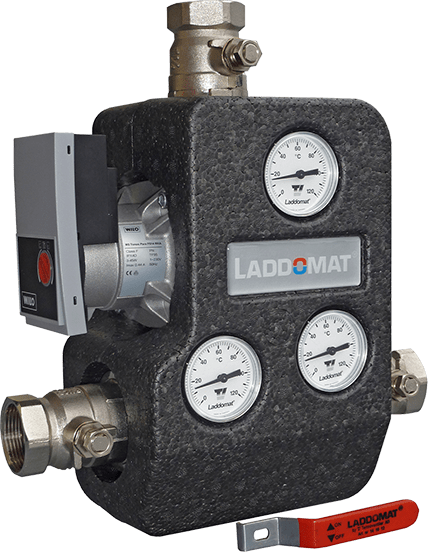

The Laddomat 22
Hydraulic fitting forming the boiler circuit to maintain the minimum temperature of the return water to the boiler.
![The Laddomat 22]()
For boiler output: 15 – 100 kW
Consists of:
- cast iron body
- thermoregulating valve
- pump
- check valve
- thermometer
- ball valve
look for more -

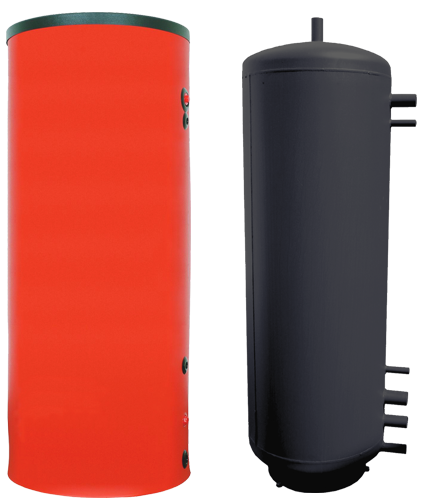

Accumulation tanks
The best connection for solid fuel boilers, increases boiler life and several fuel consumption. If it cannot have the recommended volume of storage tanks, connect the boiler with at least one buffer tank with a volume of 500 l to 1000 l
![Accumulation tanks]()
- lower fuel consumption
- long service life of the boiler and chimney
- can be combined with other heating methods
- designed for combinations of radiators with underfloor heating
- comfortable heating and ideal fuel combustion
- guaranteed more environmentally friendly heating
- warranty on the boiler body 3 years
look for more -
Set for installing a pellet burner in the upper door of the ATMOS gasification boiler
Set with ATMOS A25 burner (old version with one AD02 module) to boiler serial number 327 699 Assembly with right opening for the burner A25. Code: S0532 Assembly with left opening for the burner A25. Code: S0533 This connection is duly certified for all boilers equipped with an exhaust fan up to a nominal output…
![Set for installing a pellet burner in the upper door of the ATMOS gasification boiler]()
Boiler conversion kit with manual application for fully automatic heating using an ATMOS pellet burner. Thanks to the simplicity of assembly and disassembly, it is possible to switch back to manual feeding at any time within a few minutes.
look for more -

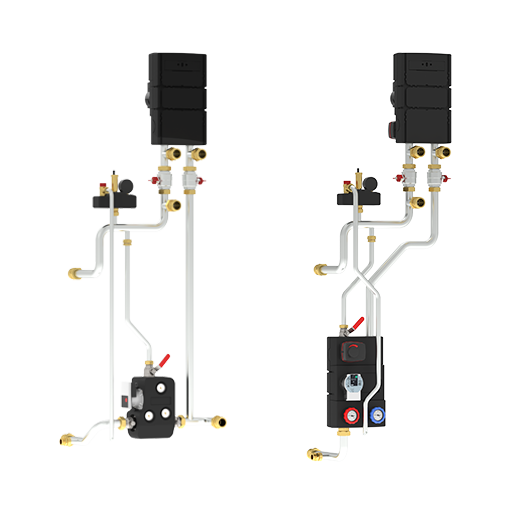

Connection of boilers ATMOS F1 – F4
Universal stainless steel connection kits for all types of ATMOS boilers up to 40 kW will facilitate and speed up the assembly itself. The set can be used for connection with or without storage tanks, you can choose Laddomat 22 or ESBE and there is the possibility of connecting up to three heating circuits (floor…
![Connection of boilers ATMOS F1 – F4]()
look for more -

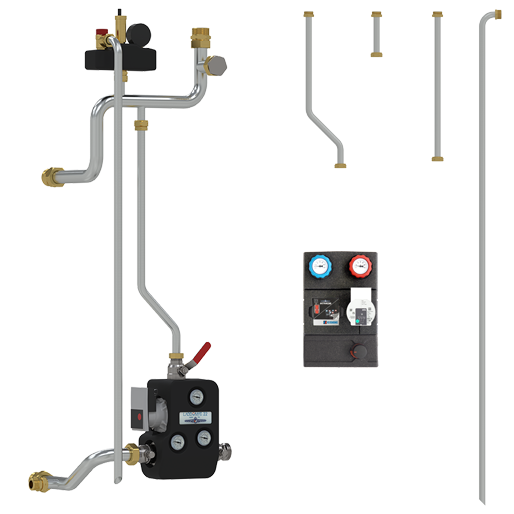

Connection of boilers ATMOS F12 Laddomat
Professional stainless steel connection based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler and quickly connect the boiler using two 6/4“ flat seal fittings. The connection includes all the necessary components required by the manufacturer (safety valve 2.5 bar, vent valve, manometer, Laddomat 22,…
![Connection of boilers ATMOS F12 Laddomat]()
look for more -

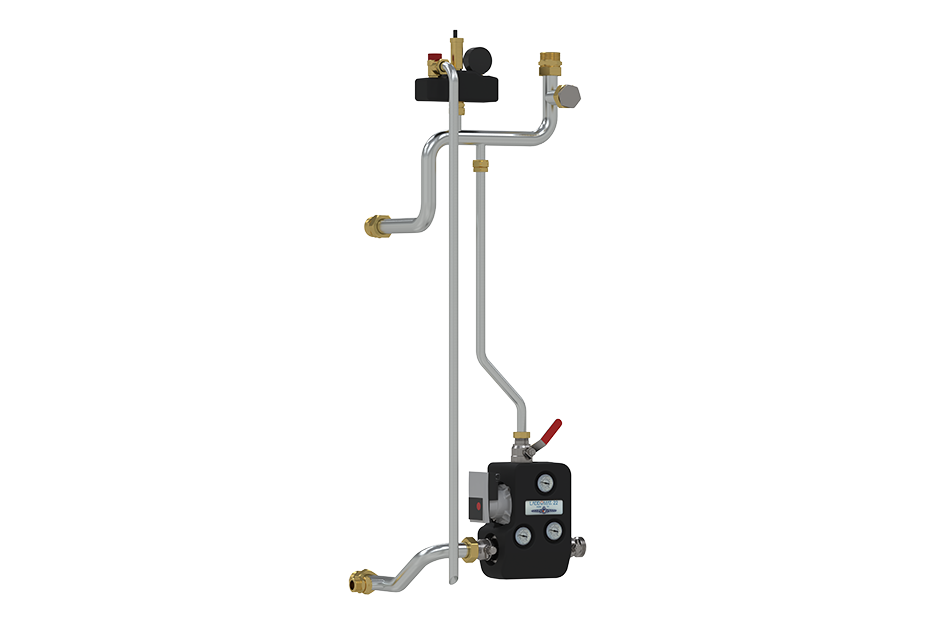

Connection of boilers ATMOS F21 – F22 (boiler circuit)
The universal set of stainless steel connection, including the boiler circuit itself, will facilitate and speed up the installation itself. The assembly can be retrofitted with ESBE pump groups, connection is possible with or without storage tanks. Up to three heating circuits can be connected (floor heating, radiators, DHW).
![Connection of boilers ATMOS F21 – F22 (boiler circuit)]()
look for more -

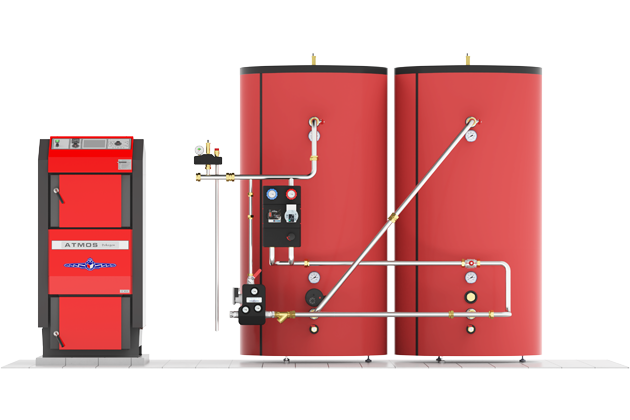

Connection ATMOS F31 and F32 Laddomat AKU
Professional stainless steel connection of accumulation tanks with a boiler circuit using a pipe with a diameter of 35 × 1.5 mm designed to maintain the minimum temperature of the return water to the boiler and quickly connect the accumulation tanks (accumulation tank) in series. The connection contains all the necessary components required by the…
![Connection ATMOS F31 and F32 Laddomat AKU]()
look for more -

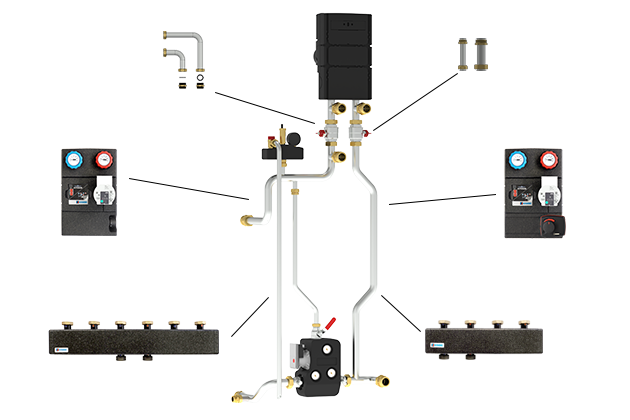

Boiler connection accessories
The accessories contain a wide range of elements for the extension of the F1 – F4 (F5 – F8), F12 (F13), F15 – F16 (F17 – F18) and F21 – F22 sets. From various pipes to pump groups to pump group manifolds.
![Boiler connection accessories]()
look for more -

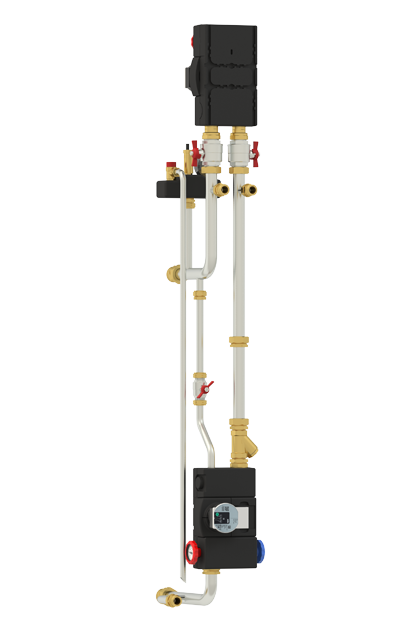

Connection of boilers ATMOS F71 ESBE
Connection for systems without accumulation tanks up to 32 kW Description: Professional stainless steel connection of the boiler based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler 70 °C and allowing quick installation using two 6/4“ nipples with a flat seal. The connection includes…
![Connection of boilers ATMOS F71 ESBE]()
look for more
