Set for installing a pellet burner in the upper door of the ATMOS gasification boiler

Set with ATMOS A25 burner (old version with one AD02 module)

to boiler serial number 327 699

Assembly with right opening for the burner A25. Code: S0532
Assembly with left opening for the burner A25. Code: S0533

This connection is duly certified for all boilers equipped with an exhaust fan up to a nominal output of 40 kW type DCxxS, CxxS, DCxxRS, ACxxS, KCxxS (except models DCxxGD, DCxxGS, DCxxGSX, DC50S). It is supplied as an optional accessory to any ATMOS gasification boiler, which is equipped with an exhaust fan up to 40 kW.

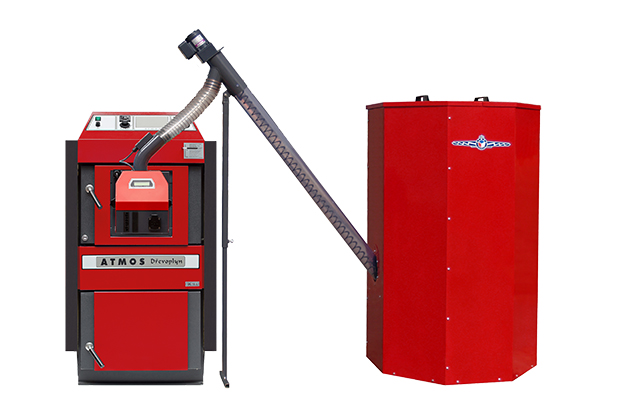

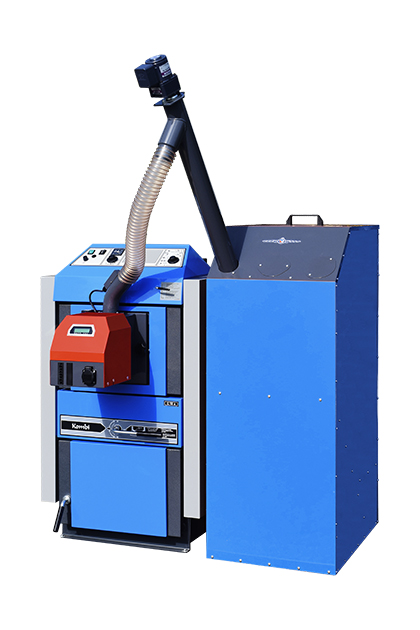

ATMOS gasification boilers with modification for the burner are a modern solution, where we build an ATMOS A25 / A45 pellet burner into the upper door of a standard gasification boiler.
We will create a tailor-made pellet boiler with automatic fuel ignition.

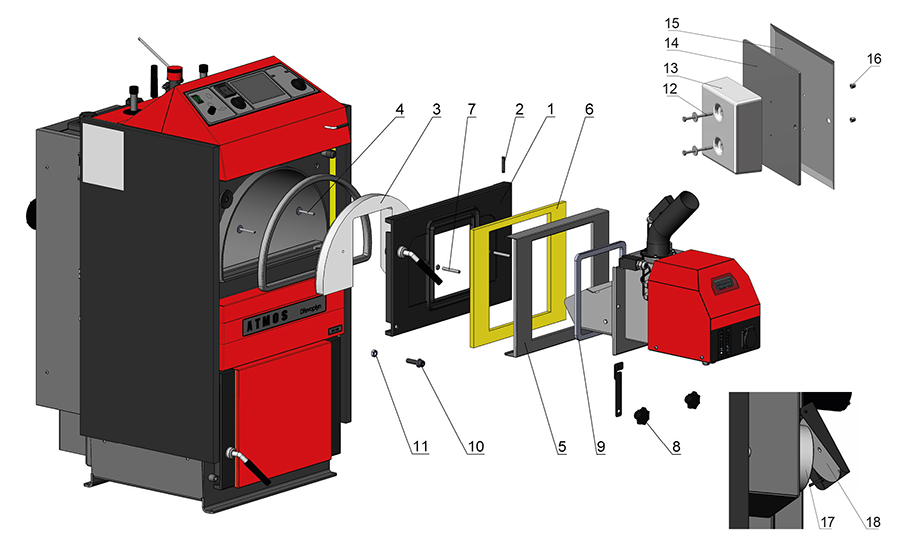

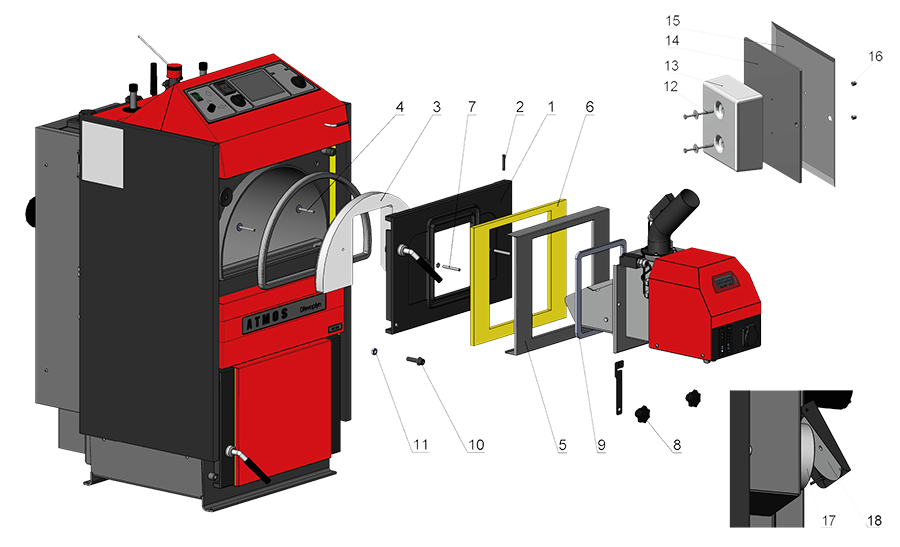

The set consists of:

1. door with burner hole – right / left (including sealing cord 18 x 18 mm)
2. hinge pin
3. thick sibral for door with burner hole
4. screw with a large washer for fixing the sibral to the door
5. small door cover with hole
6. insulation under the small door cover with a hole
7. bolt for attaching the burner to the door
8. decorative nuts
9. sealing cord
10. screw with washer to secure the door
11. nut
12. screw with a large washer for fixing the insulation block
13. insulation cube – for insulation of the blanking plug – cover plate
14. blanking plug – cover plate needed for wood heating
15. burner hole cover plate
16. cap nut
17. metal cover under the flap
18. sealing wheel made of sibral paper under the air damper
19. BT100 two-circuit safety thermostat
20. wiring – a new wiring harness for a complete change of wiring
21. separate 6-pin female connector with hood bushing designed for boilers with a hole for a connector in the hood
22. separate 6-pin male connector for connecting cable to the burner
23. separate replacement 6-pin female connector for cable for boilers without hole for the connector in the hood – (replacement for item 21)
24. allen key size 10
25. welding nuts for secured doors against unintentional opening for models manufactured before 2001
26. module AD02

Set with ATMOS A45 burner (model AC07X – old version)

Assembly with right opening for the burner A45. Code: S0624
Assembly with left opening for the burner A45. Code: S0625

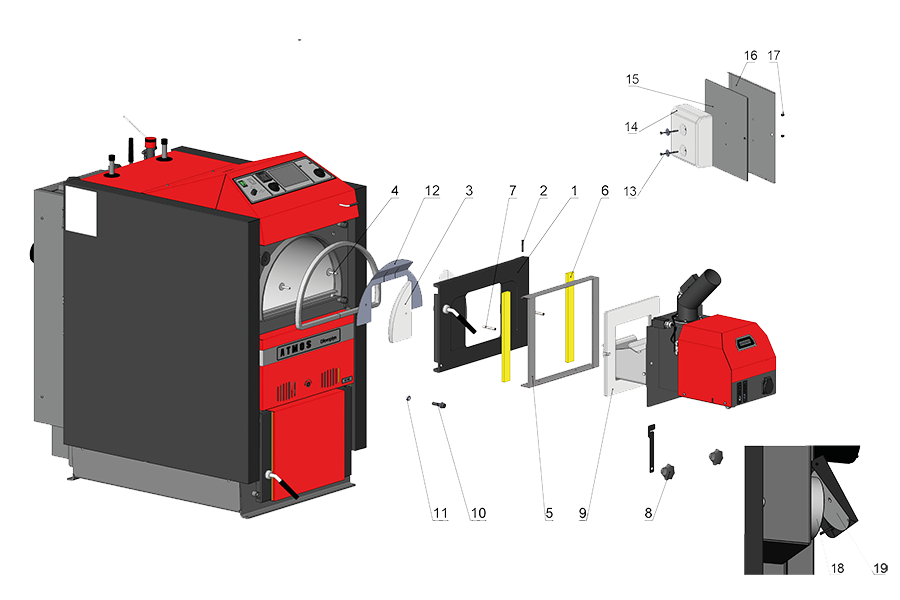

The set consists of:

1. door with burner hole – right / left (including sealing cord 18 x 18 mm)
2. hinge pin
3. thick sibral for door with burner hole
4. screw with a large washer for fixing the sibral to the door
5. small door cover with hole
6. insulation under the small door cover with a hole
7. bolt for attaching the burner to the door
8. ornamental nuts
9. sibral seal under the burner
10. screw with washer to secure the door
11. nut
12. stainless steel door curtain
13. screw with a large washer for fixing the insulation block
14. insulation block A45 – for insulation of the blanking plug – cover plate
15. blanking plug – cover plate required for heating with wood, thickness 5 mm
16. cap nut – for fixing the cover plate
17. metal cover under the flap
18. sealing wheel made of sibral paper under the air damper
19. BT100 two-circuit safety thermostat
20. wiring – a new wiring harness for a complete change of wiring
21. separate 6-pin female connector with hood bushing designed for boilers with a hole for a connector in the hood
22. separate 6-pin male connector for connecting cable to the burner
23. separate replacement 6-pin female connector for cable for boilers without hole for the connector in the hood – (replacement for item 21)
24. Allen key size 10
25. welding nuts for secured doors against unintentional opening for models manufactured before 2001
26. module AD02

The entire electrical installation is sealed in a bag together with a two-circuit safety thermostat, a sealing wheel made of sibral paper under the air damper, an Allen key, pins, a welding nut and installation instructions.

Set with burner ATMOS A25 (model 2017 – present)

from boiler serial number 327 700

Assembly with right opening for the burner A25 – Model 2017. Code: S1222
Assembly with left opening for the burner A25 – Model 2017. Code: S1223

This connection is properly certified for all boilers fitted with an exhaust fan to rated power 40 kW type DCxxS(X), CxxS(T), DCxxRS, ACxxS, KCxxS.

The set is not recommended for boilers type ATMOS DCxxGS (X), DCxxGD

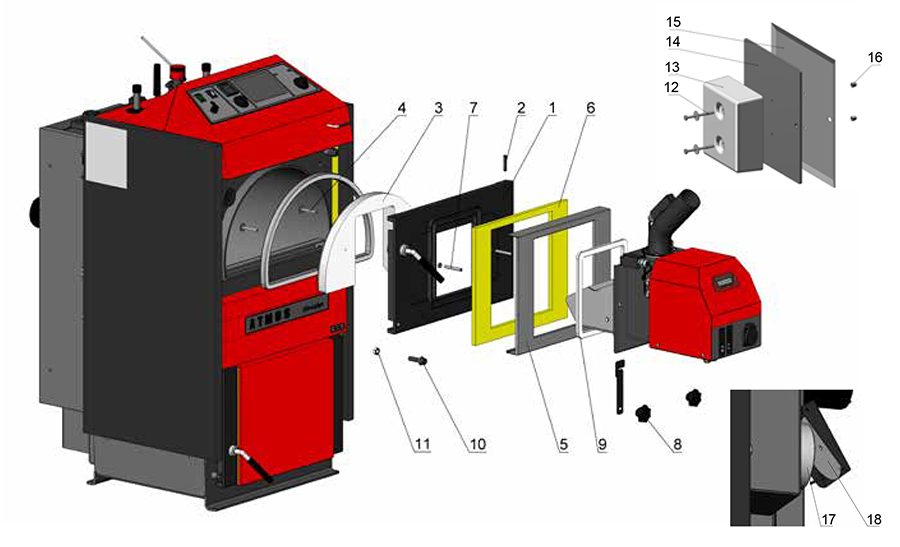

The set consists of:

1. door with burner hole – right / left (including sealing cord 18 x 18 mm)
2. hinge pin

3. thick sibral for a door with burner hole
4. screw with a large washer for fixing the sibral to the door
5. small door cover with hole
6. insulation under the small door cover with a hole
7. bolt for attaching the burner to the door
8. decorative nuts
9. sealing cord
10. screw with washer to secure the door
11. nut

12. screw with a large washer for fixing the insulation block
13. insulation cube – for insulation of the blanking plug – cover plate
14. blanking plug – cover plate needed for wood heating
15. burner hole cover plate
16. cap nut

17. metal cover under the flap
18. sealing wheel made of sibral paper under the air damper = (seal under the exhaust fan motor)

19. BT100 two-circuit safety thermostatv
20. wiring – a new wiring harness for a complete change of wiring – model 2017
21. separate 6-pin female connector with hood bushing designed for boilers with a hole for a connector in the hood
22. separate 6-pin male connector for connecting cable to the burner
23. allen key size 10

24. welding nuts for secured doors against unintentional opening
25. modul AD03
26. housing+ fuse(6,3 A) – T6,3A/1500 – H type
27. thermostat for pump 70 °C
28. toggle switch I-O-II
29. dashboard sticker
30. boiler temperature sensor TK (KTF 20 – 3,5 m)
31. cable with connector for connecting the pump into the boiler circuit
32. flue gas thermostat double circuit

The entire electrical installation is sealed in a bag together with a two-circuit safety and flue gas thermostat, a sealing wheel made of sibral paper under the air damper, an Allen key, pins, a welding nut and installation instructions.

Set with burner ATMOS A45 (model 2017 – present)

from boiler serial number 327 700

Assembly with right opening for the burner A45 – Model 2017. Code: S1224
Assembly with left opening for the burner A45 – Model 2017. Code: S1225

This connection is properly certified for all boilers fitted with an exhaust fan to rated power 50 kW type DCxxS(X), CxxS(T), DCxxRS, ACxxS, KCxxS.
The set is not recommended for boilers type ATMOS DCxxGS (X), DCxxGD

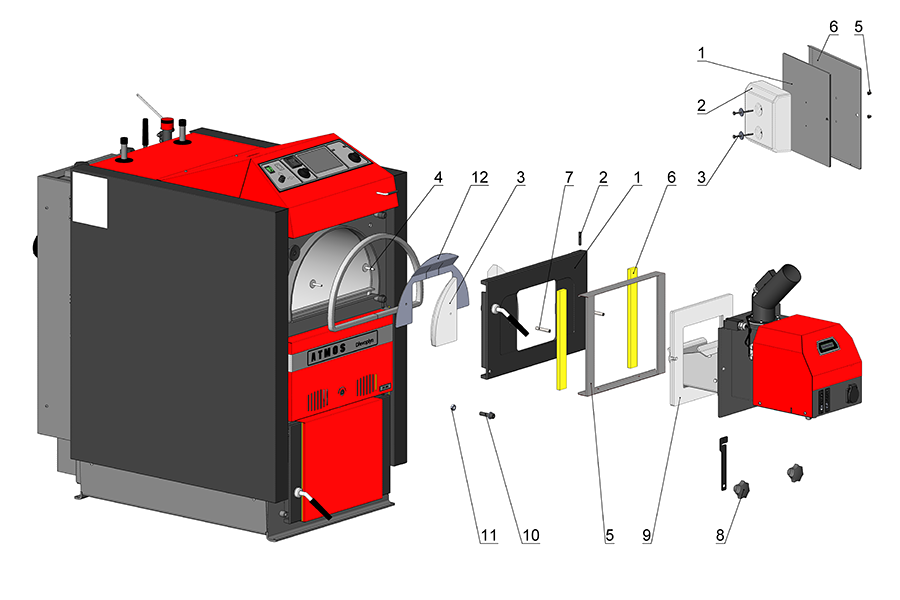

1. door with burner hole – right / left (including sealing cord 18 x 18 mm)
2. hinge pin
3. thick sibral for door with burner hole
4. screw with a large washer for fixing the sibral to the door
5. small door cover with hole
6. insulation under the small door cover with a hole
7. bolt for attaching the burner to the door
8. ornamental nuts
9. sibral seal under the burner
10. screw with washer to secure the door
11. nut
12. stainless steel door curtain
13. screw with a large washer for fixing the insulation block
14. insulation block A45 – for insulation of the blanking plug – cover plate
15. blanking plug – cover plate required for heating with wood, thickness 5 mm
16. burner hole cover plate – thickness 1 mm
17. cap nut – for fixing the cover plate
18. metal cover under the flap
19. sealing wheel made of sibral paper under the air damper
20. BT100 two-circuit safety thermostat
21. wiring – a new wiring harness for a complete change of wiring
22. separate 6-pin female connector with hood bushing designed for boilers with a hole for a connector in the hood
23. separate 6-pin male connector for connecting cable to the burner
24. allen key size 10
25. welding nuts for secured doors against unintentional opening
26. AD03 modul
27. housing + fuse (6,3A) – T6,3A/1500 – type H
28. thermostat for pump 70 °C
29. toggle switch I-O-II
30. dashboard sticker
31. boiler temperature sensor TK (KTF 20 – 3,5 m)
32. cable with connector for connecting the pump into the boiler circuit
33. flue gas thermostat – double circuit
