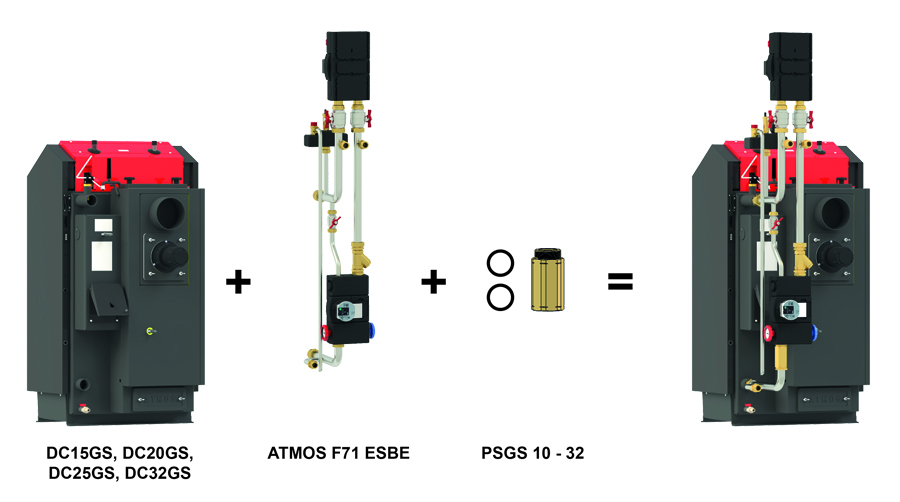

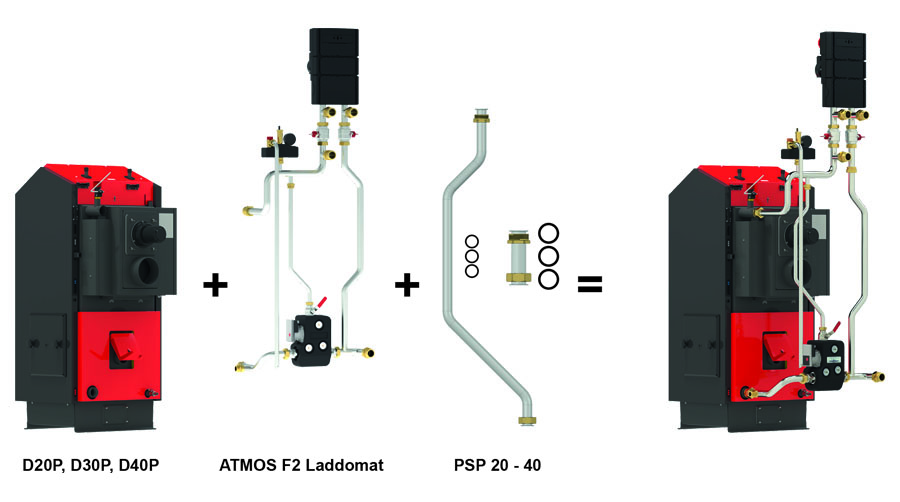

The accessories contain a wide range of elements for the extension of the F1 – F4 (F5 – F8) and F12 sets. From various pipes to pump groups to pump group manifolds.

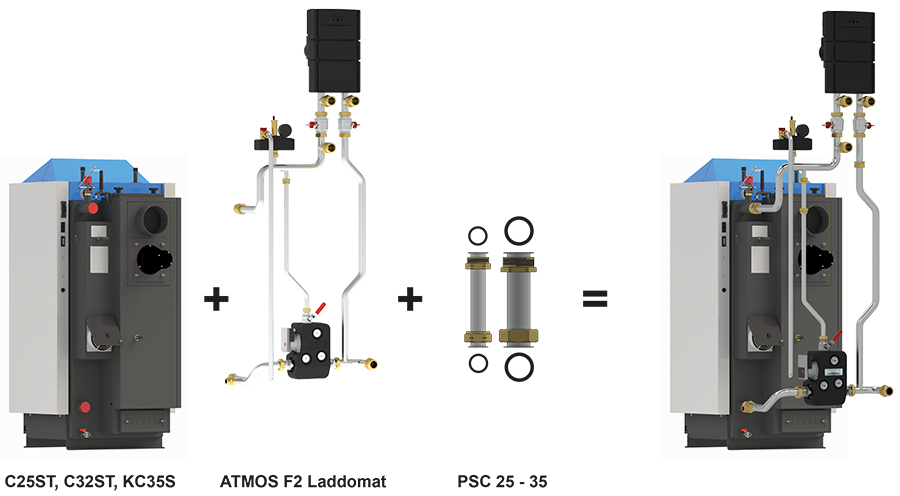

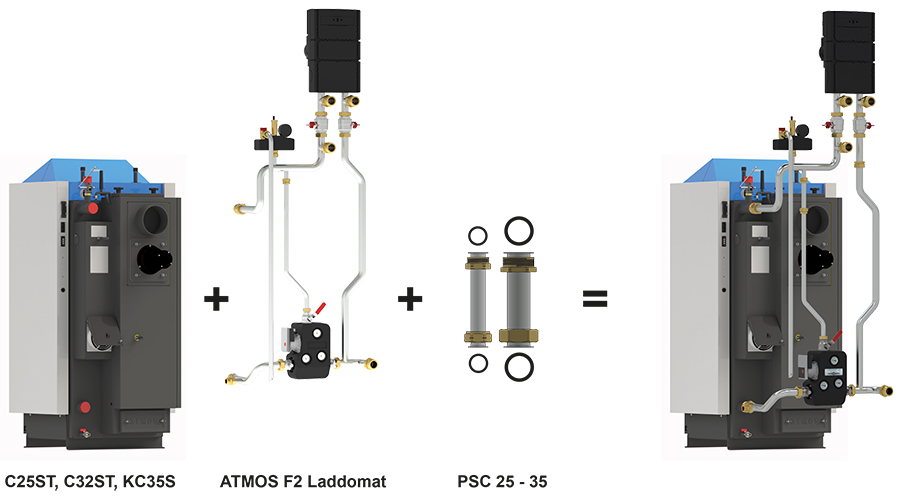

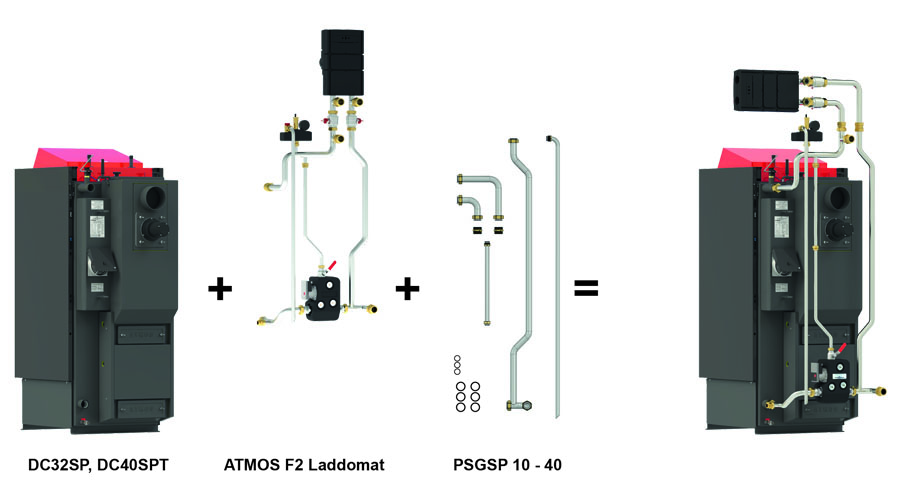

This set of pipes allows the installation of the ATMOS F2 Laddomat connection on (high) boilers C25ST and C32ST. It consists of two tubes with cap nuts and flat seals.
(order code: P0650)
| The set contain: | ||||
| fitting diameter | pipe diameter / seal thickness | number of pieces in a set |  |
|
| Connecting pipe (with brass fittings) |
1“ | 22 mm | 1 | |
| Connecting pipe (with brass fittings) |
6/4“ | 35 mm | 1 | |
| Flat gasket | 1“ | 3 mm | 3 | |
| Flat gasket | 6/4“ | 3 mm | 3 | |

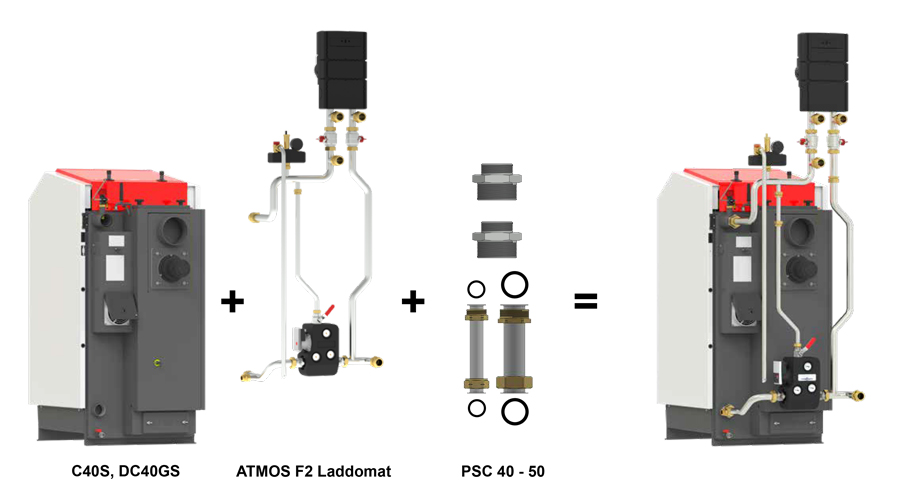

Pipe extension set allows the installation of the ATMOS F2 Laddomat connection on boilers C40S and DC40GS. It consists of two tubes with cap nuts, flat seals and two reducing nipples.
(order code: P0653)
| The set contain: | ||||
| fitting diameter | pipe diameter / seal thickness | number of pieces in a set | |
|
| Connecting pipe (with brass fittings) |
1“ | 22 mm | 1 | |
| Connecting pipe (with brass fittings) |
6/4“ | 35 mm | 1 | |
| Flat gasket
|
1“ | 3 mm | 3 | |
| Flat gasket
|
6/4“ | 3 mm | 3 | |
| Reducing nipple
|
2″ – 6/4“ | 2 | ||

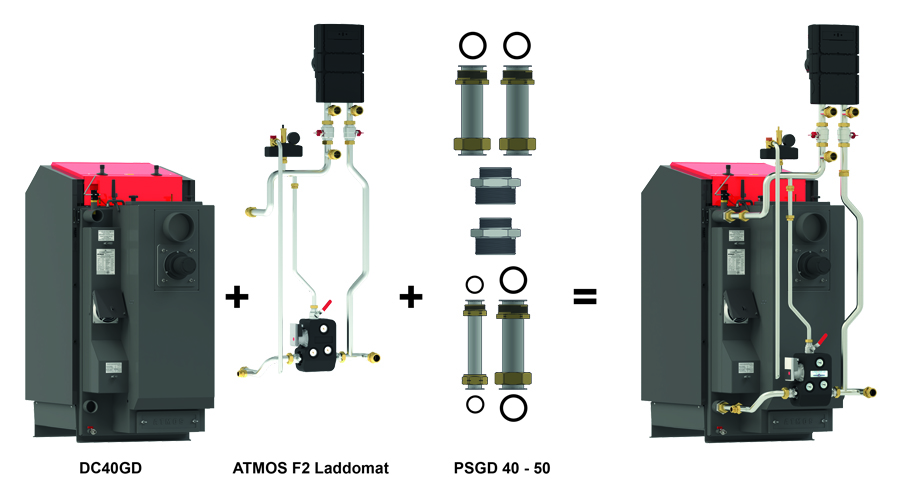

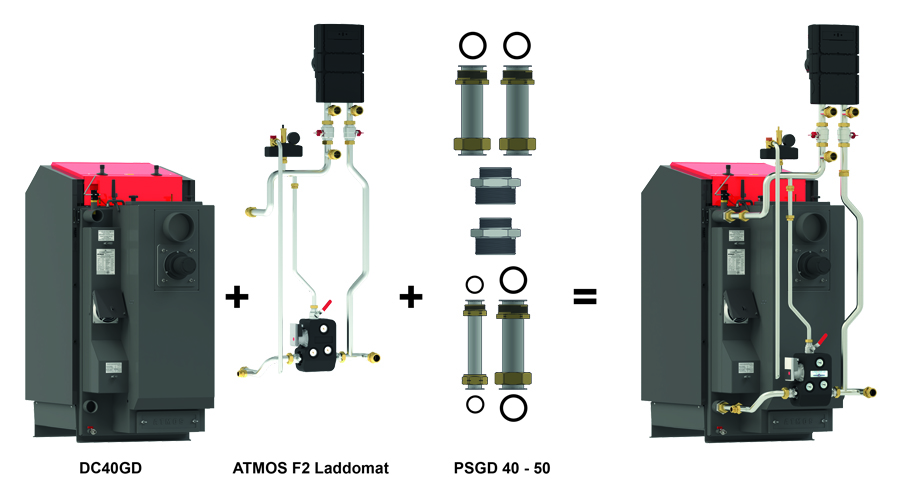

Pipe extension set allows the installation of the ATMOS F6 Laddomat connection on the boiler DC40GD. It consists of four tubes with cap nuts, flat seals and reducing nipples.
(order code: P0654)
| The set contain: | ||||
| fitting diameter | pipe diameter / seal thickness | number of pieces in a set | |
|
| Connecting pipe (with brass fittings) |
1“ | 22 mm | 1 | |
| Connecting pipe (with brass fittings) |
6/4“ | 35 mm | 3 | |
| Flat gasket
|
1“ | 3 mm | 3 | |
| Flat gasket
|
6/4“ | 3 mm | 5 | |
| Reducing nipple
|
2″ – 6/4“ | 2 | ||

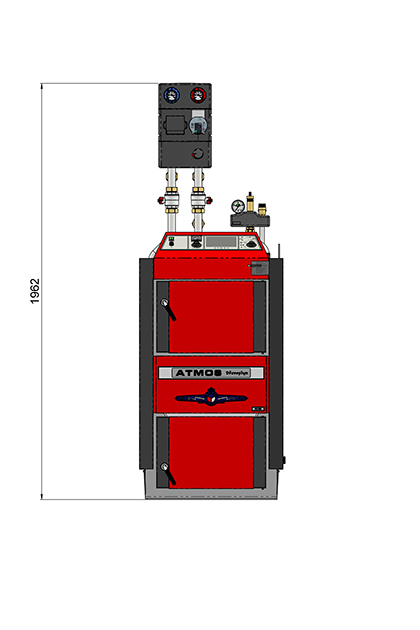

Can be used to instal circulation unite (with spacing 125 mm) in to the horizontal position for boiler rooms with low ceiling.
(code: P0651)
| The set contain: | ||||
| fitting diameter | pipe diameter / seal thickness | number of pieces in a set |  |
|
| Small elbow | 6/4“ | 35 mm | 1 | |
| Large elbow | 6/4“ | 35 mm | 1 | |
| Nipple | 6/4“ | 2 | ||
| Flat gasket | 6/4“ | 3 mm | 8 | |

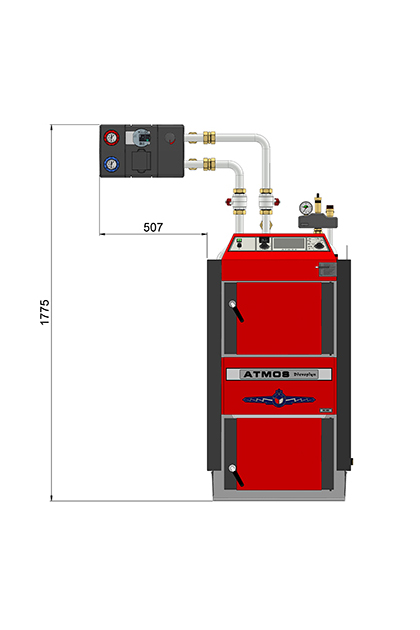

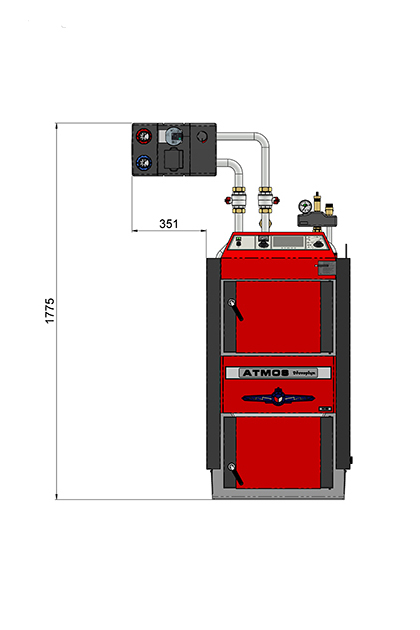

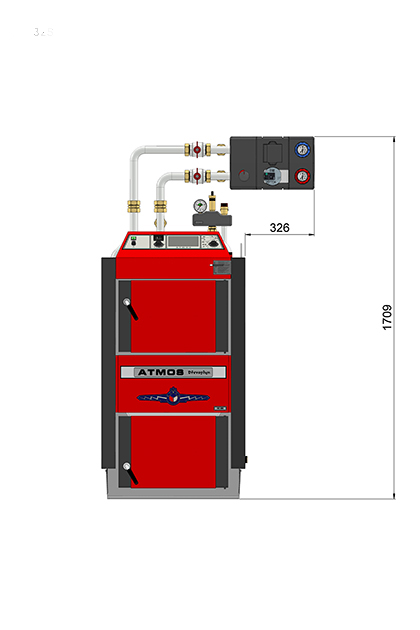

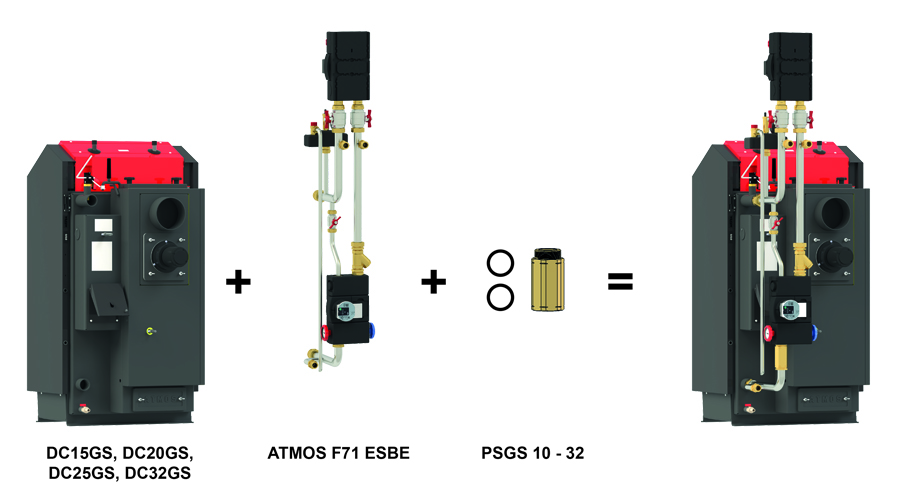

with connection ATMOS F2 / F6 Laddomat – F4 / F8 ESBE
for boilers:
(DC32S, DC40SX, DC15GS, DC20GS, DC25GS, DC32GS, DC18GD, DC25GD, DC30GD)

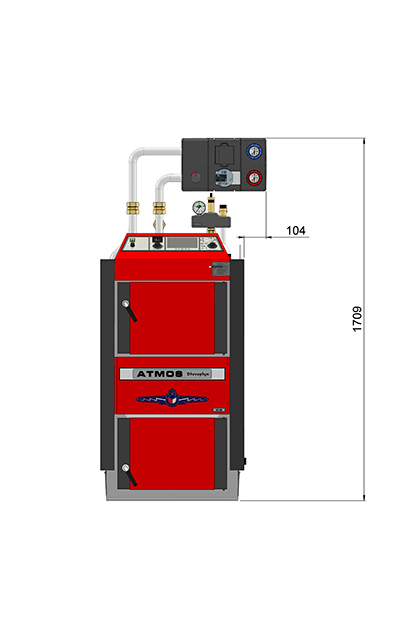

with connection ATMOS F1 / F5 Laddomat – F3 / F7 ESBE
for boilers:
(DC18S, DC22S, DC22SX, DC25S, DC30SX, C15S, C18S, AC16S, AC25S)
Can be used to instal circulation unite (with spacing 90 mm) in to the horizontal position for boiler rooms with low ceiling.
| The set contain: | ||||
| fitting diameter | pipe diameter / seal thickness | number of pieces in a set |  |
|
| Small elbow | 1“ | 22 mm | 1 | |
| Large elbow | 1“ | 22 mm | 1 | |
| Nipple | 1“ | 2 | ||
| Flat gasket | 1“ | 3 mm | 8 | |

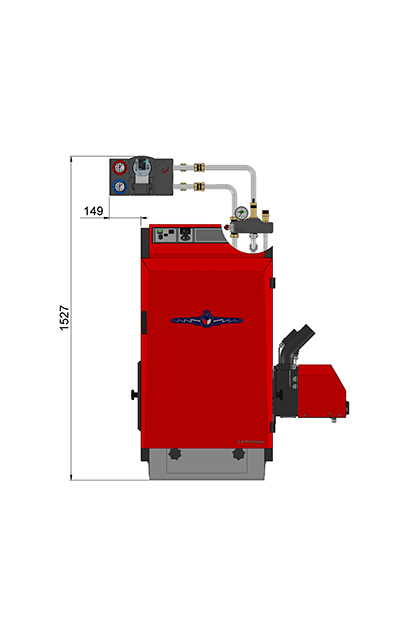

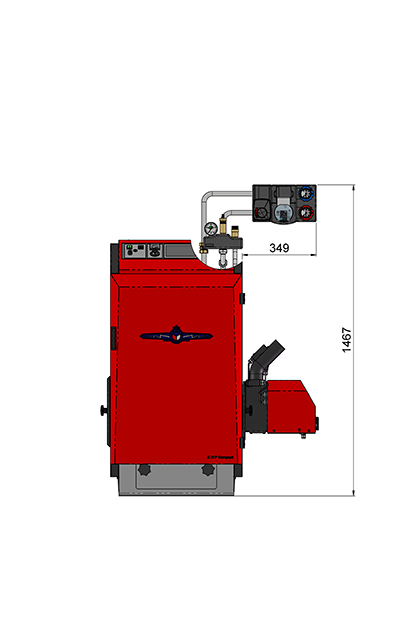

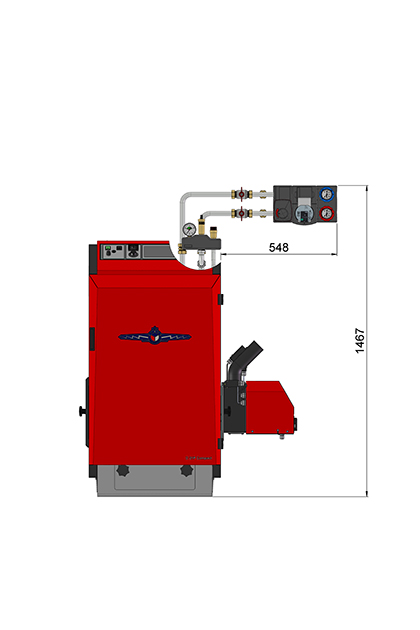

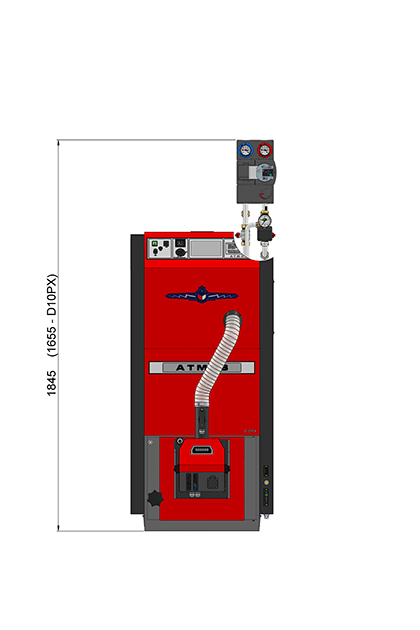

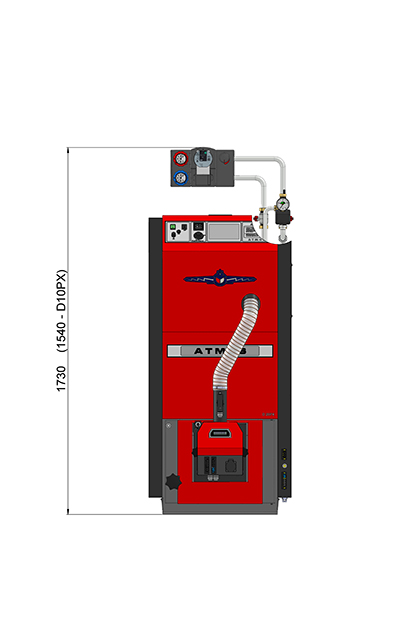

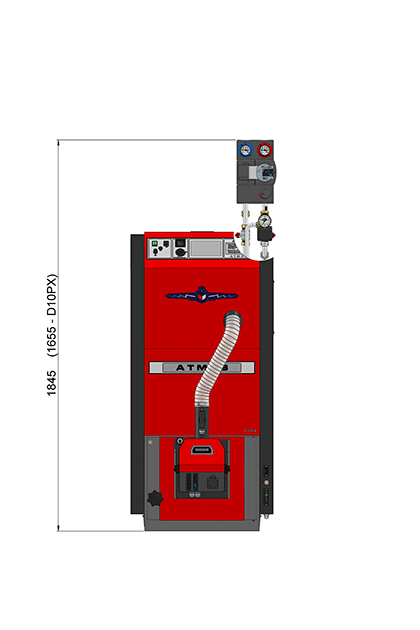

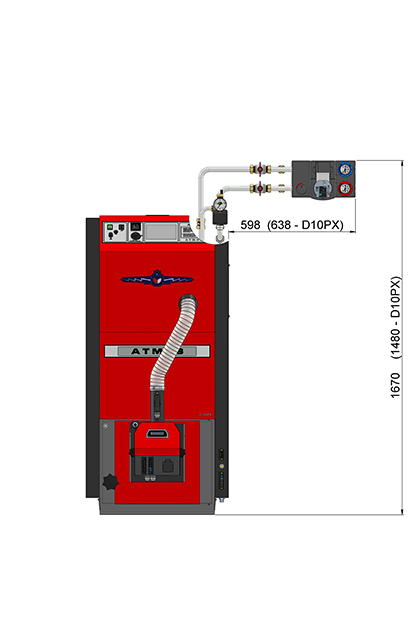

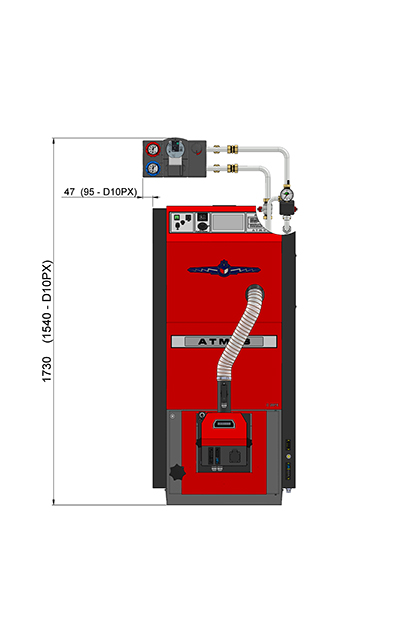

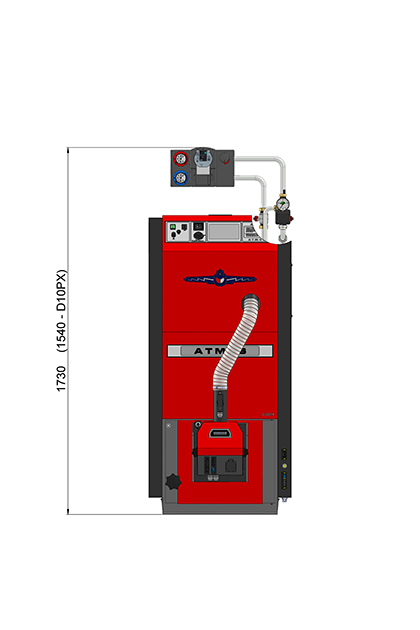

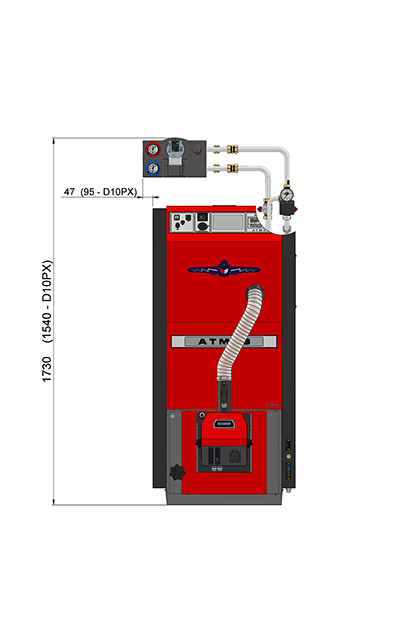

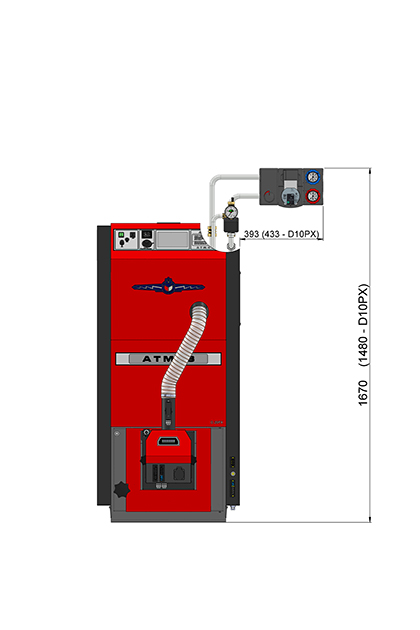

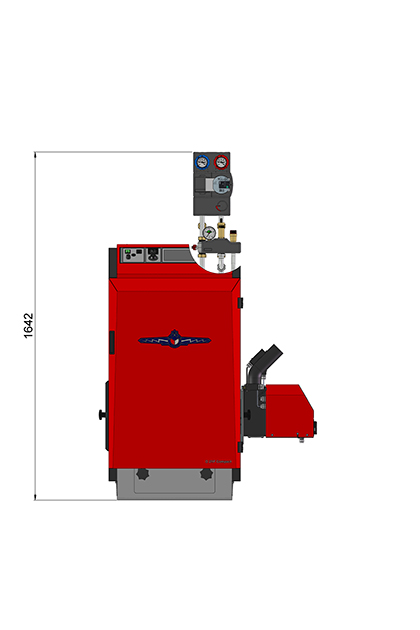

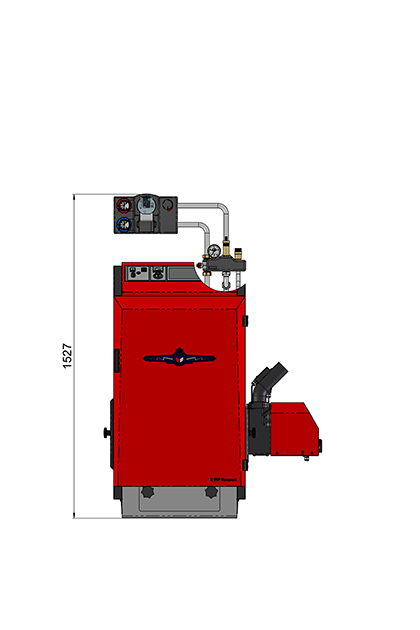

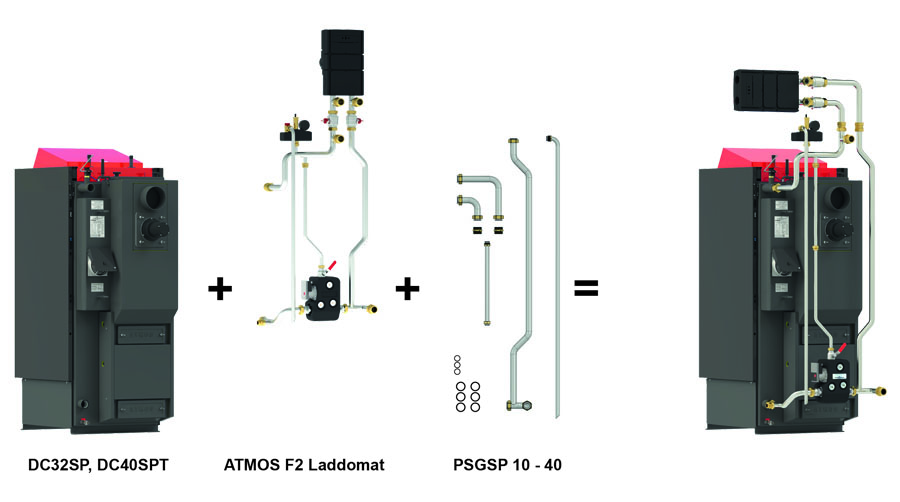

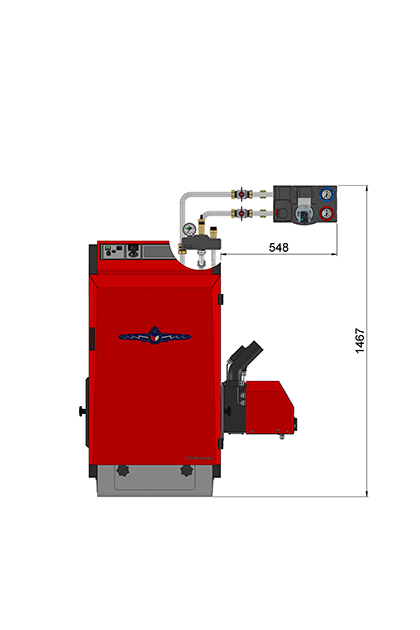

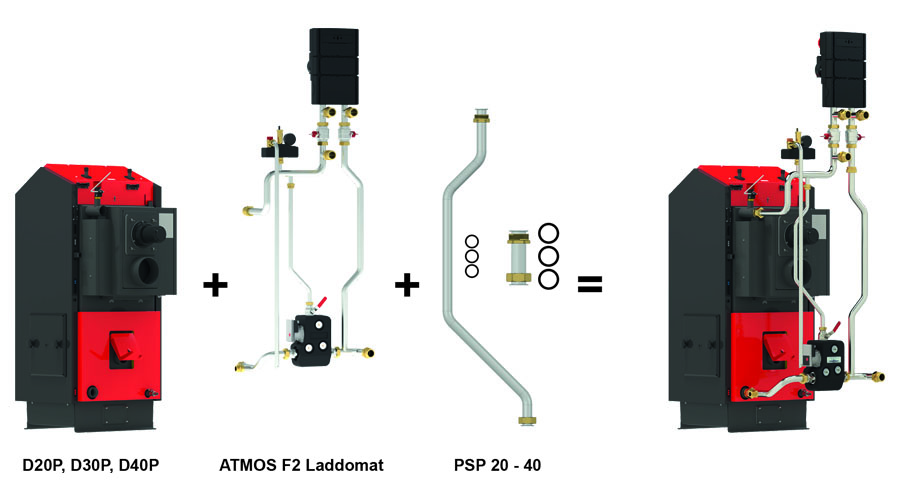

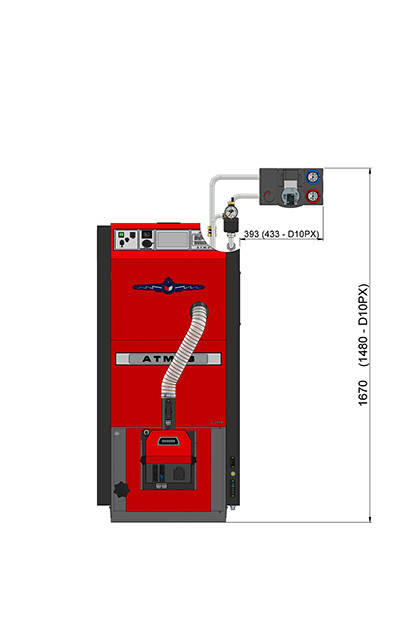

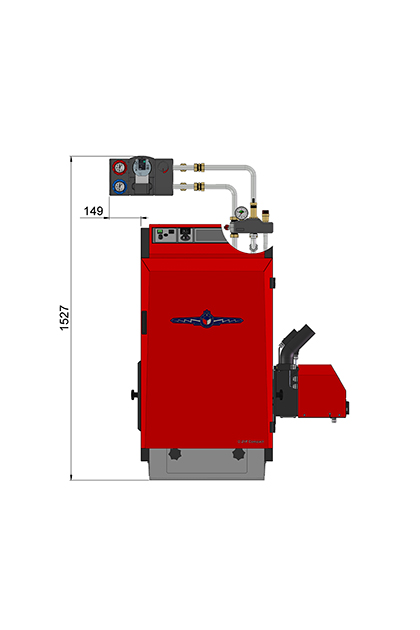

with connection ATMOS F15 / F17 (D10PX / PX10) – F16 / F18 (D10PX, D15PX, D20PX, D25PX, PX10, PX15, PX20, PX25)

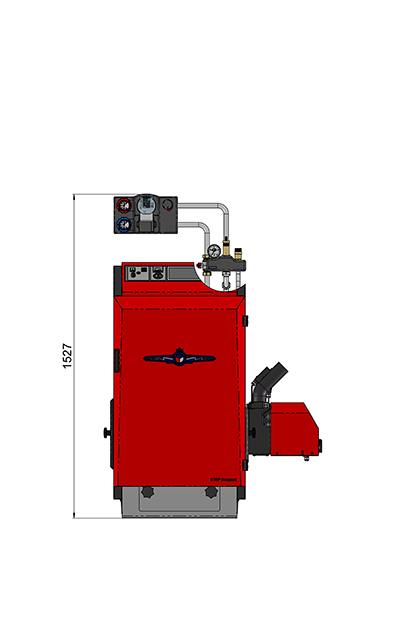

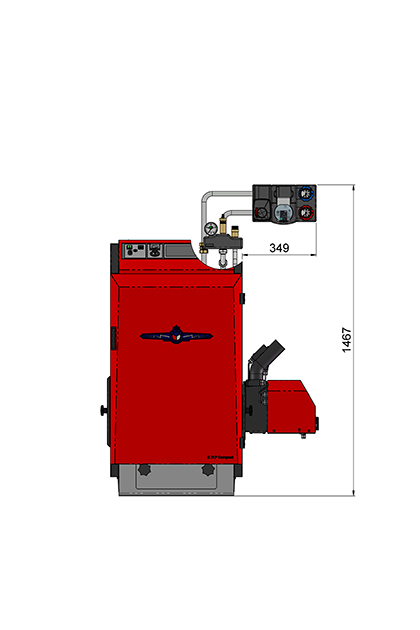

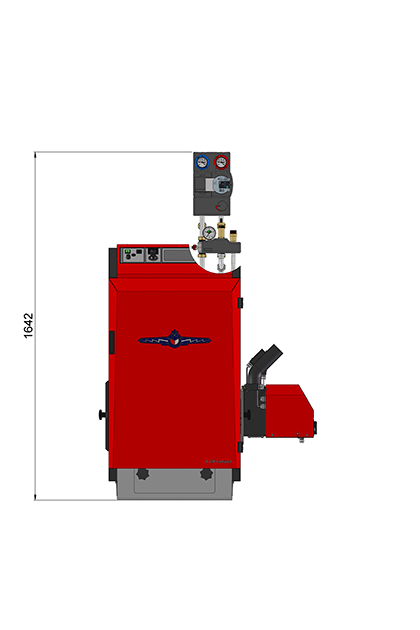

with boiler DxxP Compact and Installation (D14P Compact, D21P Compact, D25P Compact, P14 Compact, P21 Compact, P25 Compact)
| Circulation unit ATMOS ESBE GRA211 Controlled – actuator 120 s Spacing 125 mm – 1“ ↑↓ 1“ Recommended for radiators/underfloor heating (order code: P0514) |
 |
| Circulation unit ATMOS ESBE GRA211 Mixing Spacing 125 mm – 1“ ↑↓ 1“ Recommended for radiators (order code: P0538) |
 |
| Circulation unit ATMOS ESBE GFA211 Thermostatic 20 – 55 °C Spacing 125 mm – 1“ ↑↓ 1“ Recommended for underfloor heating (order code: P0513) |
 |
| Circulation unit ATMOS ESBE GDA211 Direct Spacing 125 mm – 1“ ↑↓ 1“ Recommended for domestic hot water (order code: P0512) |
 |
| Manifold for three circulation units (three circuits) ATMOS ESBE GMA431 Spacing 125 mm – 1“ ↑↓ 1“ (order code: P0516) |
 |
| Manifold for two circulation units (two circuits) ATMOS ESBE GMA421 Spacing 125 mm – 1“ ↑↓ 1“ (order code: P0515) |
 |
| Actuator ESBE ARA 651 adjustment time: 60 s control: 3-point (boiler circuit) operating range: 90° torque: 6Nm (order code: P0517) |
 |
| Actuator ESBE ARA 661 adjustment time: 120 s control: 3-point (system circuit) operating range: 90° torque: 6Nm (order code: P0415) |
|
| Circulation unit ATMOS/ESBE GRA 311 Controlled – actuator 120 s Spacing 90 mm – 1“ ↑↓ 1“ Recommended for radiators/underfloor heating (order code: P0505) |
 |
| Circulation unit ATMOS/ESBE GRA 311 Mixing Spacing 90 mm – 1“ ↑↓ 1“ Recommended for radiators (order code: P0533) |
 |
| Circulation unit ATMOS/ESBE GDA 311 Direct Spacing 90 mm – 1“ ↑↓ 1“ Recommended for domestic hot water (order code: P0503) |
 |
| Circulation unit ATMOS/ESBE GFA 311 Thermostatic 20 – 55 °C Spacing 90 mm – 1“ ↑↓ 1“ Recommended for underfloor heating (order code: P0504) |
 |
| Manifold for two circulation units (two circuits) ATMOS/ESBE GMA 321 Spacing 90 mm – 1“ ↑↓ 1“ (order code: P0506) |
 |
| Manifold for three circulation units (three circuits) ATMOS/ESBE GMA 331 Spacing 90 mm 1“ ↑↓ 1“ (order code: P0507) |
 |
| Actuator ESBE ARA 661 adjustment time: 120 s control: 3-point (system circuit) operating range: 90° torque: 6Nm (order code: P0415) |
|
