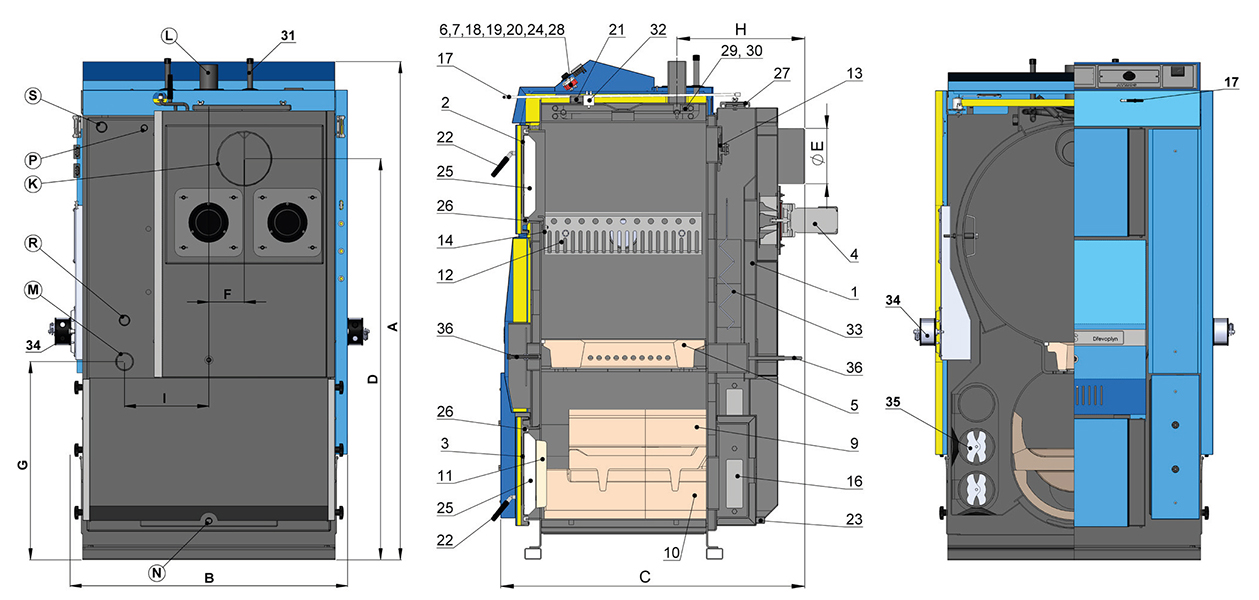

| Description of the boiler drawing |
| 1. |
Boiler body |
24. |
Fan thermostat 2 (boiler) |
| 2. |
Filling door – upper |
25. |
Door panel – Sibral – big |
| 3. |
Ashtray door – lower |
26. |
Door seal – cord 18 x 18 |
| 4. |
Extraction fan (J22RR552) – 2x |
27. |
Cleaning lid |
| 5. |
Heat-resistant fitting – nozzle |
28. |
Waste gas thermostat |
| 6. |
Control panel |
29. |
Pump thermostat – 70 °C |
| 7. |
Safety thermostat |
30. |
Safety pump thermostat – 95 °C |
| 9. |
Heat-resistant fitting – spherical space upper |
31. |
Cooling loop against overheating |
| 10. |
Heat-resistant fitting – spherical space lower |
32. |
Capacitor – 2x |
| 11. |
Heat-resistant fitting – half-moon |
33. |
Flue gas brake in the flue – 2x |
| 12. |
Shield of the primary air – 2x |
34. |
Belimo actuator |
| 13. |
Firing up valve |
35. |
Flue gas brake – in tubesheets – 4x |
| 14. |
Aperture frame |
36. |
Secondary air regulation |
| 15. |
Tube sheet cover |
|
|
| 17. |
Fire valve stem |
K |
– the flue-gas duct neck |
| 18. |
Thermometer |
L |
– the boiler water outlet |
| 19. |
Fan thermostat 1 (boiler) |
M |
– the boiler water inlet |
| 20. |
Switch |
N |
– filling valve pipe sleeve |
| 21. |
Modul AD03 – 2x |
P |
– sleeve for a sensor of the valve which regulates the cooling loop |
| 22. |
Door handle |
S |
– spare output (such as for an expansion tank or a water heater) |
| 23. |
Filling valve |
R |
– spare output (such as for an expansion tank or a water heater) |
