Pellet conveyors

Pellet screw conveyors are designed for ATMOS pellet burners. Manufactured as shaft and shaftless in various lengths. Equipped with a geared motor.

Pellet screw conveyors are designed for ATMOS pellet burners.

DA shaftless conveyors in lengths from 1.5 m to 4 m are designed for the A25 burner.

DRA shaft conveyors in lengths from 1.7 m to 5 m are designed for A45 and A85 burners.

The conveyors are equipped with a geared motor.

A support leg is supplied with each conveyor. Adjust its length so that the angle of the conveyor is a maximum of 45 ° and the hose is taut.

Conveyors for ATMOS A25 burner

DA1500, DA2000, DA2500, DA3000, DA4000

DA1500 screw conveyor with a length of 1.5 m and a diameter of 75 mm (25 W gearbox) Code: H0151
This conveyor is designed only for boilers in which the burner is built into the side of the boiler – D14P, D21P, D25P, 15P, D20P and combi boiler DCxxSP.

DA2000 screw conveyor with a length of 2 m and a diameter of 75 mm (25 W gearbox) Code: H0207
This conveyor is primarily designed for gasification boilers with a built-in burner in the upper feed door – DCxxS (X), DCxxRS, CxxS, ACxxS. However, it can also be used for standard pellet boilers type DxxP.

DA2500 screw conveyor with a length of 2.5 m and a diameter of 75 mm (25 W gearbox) Code: H0208

DA3000 screw conveyor with a length of 3 m and a diameter of 75 mm (40 W gearbox) Code: H0209

DA4000 screw conveyor with a length of 4 m and a diameter of 75 mm (40 W gearbox) Code: H0212
These conveyors are designed for all ATMOS pellet boilers, where the fuel tank is at a greater distance from the boiler.

The length of the conveyor must be chosen so that the hose between the burner and the conveyor is taut and has a minimum length of 20 cm (optimally 30 – 60 cm) for safety reasons. The maximum length of the hose should not exceed 1 m.

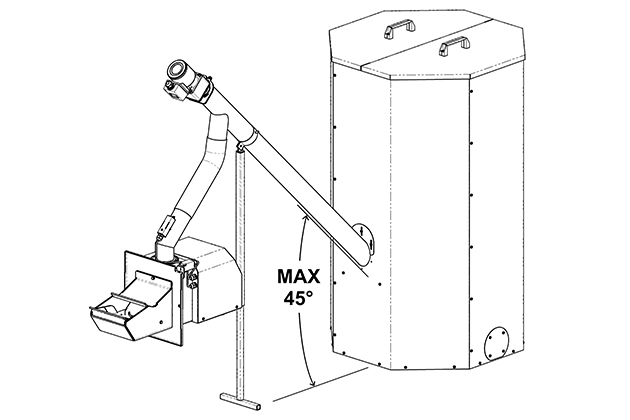

with conveyor leg – a support leg is supplied with each conveyor. Adjust its length so that the angle of the conveyor is a maximum of 45 ° and the hose is taut.

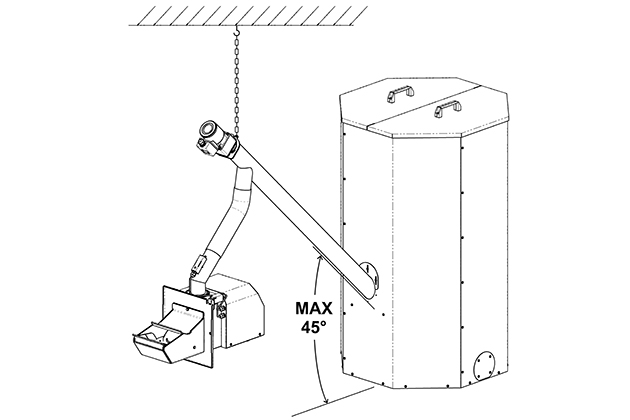

suspension from the ceiling – in confined spaces, we recommend replacing the leg with a chain (part of the delivery of the conveyor), on which we hang the conveyor from the ceiling. Adjust its length so that the angle of the conveyor is a maximum of 45 ° and the hose is taut.

ATTENTION: The conveyor is supplied separately, but is an integral part of the A25 pellet burner system



Dopravníky pro hořák ATMOS A45/85

DRA50 – 1.7 m, DRA50 – 2.5 m, DRA50 – 4 m, DRA50 – 5 m

Shaft screw conveyor DRA50 code: H0039
1.7 m long and 80 mm in diameter (40 W gearbox)

Shaft screw conveyor DRA50 code: H0037
2.5 m long and 80 mm in diameter (40 W gearbox)

Shaft screw conveyor DRA50 code: H0004
4 m long and 80 mm in diameter (40 W gearbox)

Shaft screw conveyor DRA50 code: H0005
5 m long and 80 mm in diameter (40 W gearbox)

The length of the conveyor must be chosen so that the hose between the burner and the conveyor is taut and has a minimum length of 20 cm (optimally 30 – 60 cm) for safety reasons. The maximum length of the hose should not be greater than 1m.

with conveyor leg – a support leg is supplied with each conveyor. Adjust its length so that the angle of the conveyor is a maximum of 45 ° and the hose is taut.

suspension from the ceiling – in confined spaces, we recommend replacing the leg with a chain (part of the delivery of the conveyor), on which we hang the conveyor from the ceiling. Adjust its length so that the angle of the conveyor is a maximum of 45 ° and the hose is taut.

ATTENTION: The conveyor is supplied separately, but it is an integral part of the A45 / A85 pellet burner system.

Conveyors for compact storage tanks

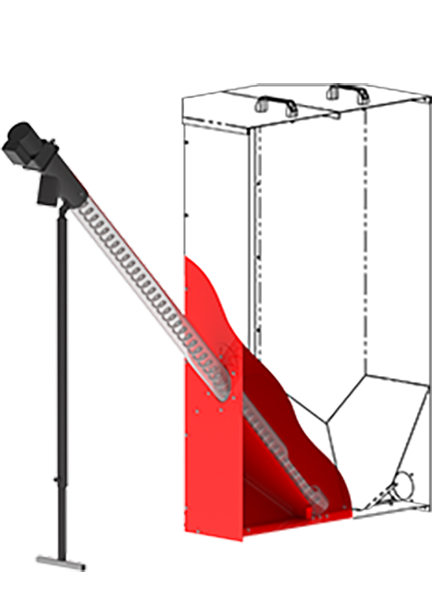

It is a set of pellet tank with a volume of 240 l / 300 l / 400 l with the DRA25 conveyor, which is designed for small and cramped boiler rooms. Allows the tank to be placed in close proximity to the boiler so that the assembly takes up little space.

156 kg of pellets, ie approx. 700 kWh, are stored in a tank with a useful volume of 240 l. (10 bags / 15 kg)
195 kg of pellets, ie approx. 880 kWh, are stored in a tank with a useful volume of 300 l. (13 bags / 15 kg)
260 kg of pellets, ie approx. 1,170 kWh, are stored in a tank with a useful volume of 400 l. (17 bags / 15 kg)

AZPD set designed for pellet boilers DxxP, DCxxSP (X), CxxSP

Set AZPD 240 R (red) code: H0283
with conveyor DRA25 – 1.3 m (gearbox 25 W)

Set AZPD 240 B (blue) code: H0284
with conveyor DRA25 – 1.3 m (gearbox 25 W)

AZPD set designed for pellet boilers DxxP, DCxxSP (X), CxxSP

Set AZPD 300 R Design (red) code: H0321
with conveyor DRA25 – 1.3 m (gearbox 25 W)

Set AZPD 300 B Design (blue) code: H0322
with conveyor DRA25 – 1.3 m (gearbox 25 W)

AZPD set designed for pellet boilers DxxP, DCxxSP (X), CxxSP

Set AZPD 400 R Design (red) code: H0445
with conveyor DRA25 – 1.3 m (gearbox 25 W)

Set AZPD 400 B Design (blue) code: H0446
with conveyor DRA25 – 1.3 m (gearbox 25 W)

AZPU set designed for gasification boilers with modification for pellet burner

Set AZPU 240 C (red) code: H0280
with conveyor DRA25 – 1.7 m (gearbox 25 W)

Set AZPU 240 M (blue) code: H0281
with conveyor DRA25 – 1.7 m (gearbox 25 W)

AZPU set designed for gasification boilers with modification for pellet burner

Set AZPU 400 C Design (red) code: H0447
with conveyor DRA25 – 1.7 m (gearbox 25 W)

Set AZPU 400 M Design (blue) code: H0448
with conveyor DRA25 – 1.7 m (gearbox 25 W)
