DC105S – Specification
 |
 |
Rated power 105 kW |
 |
Boiler efficiency 90,8 % | |
 |
Emission class nr. 5 (Ecodesign) | |
 |
Log lenght 530 mm |

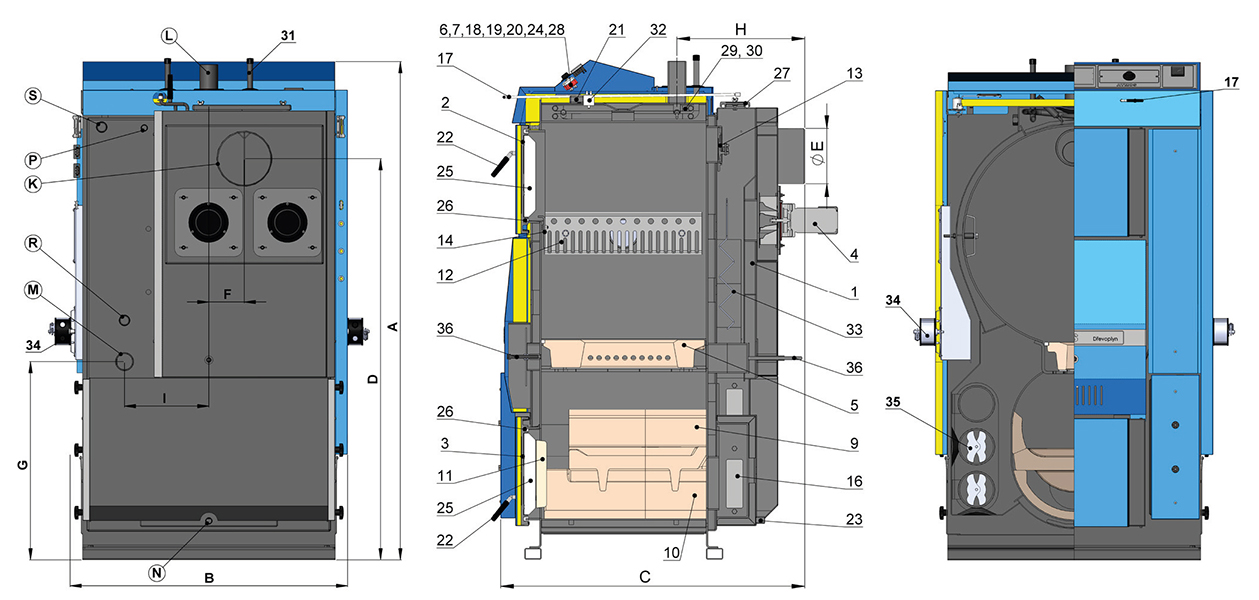

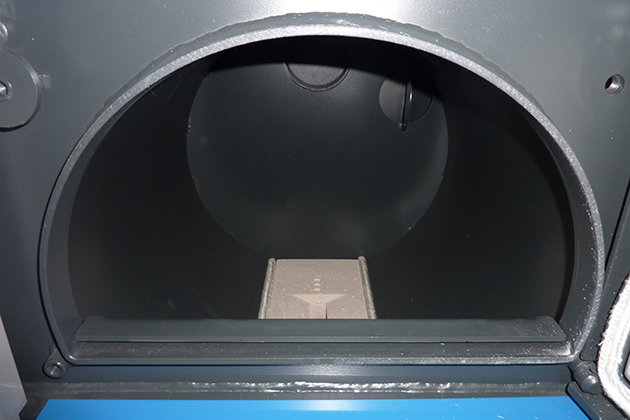

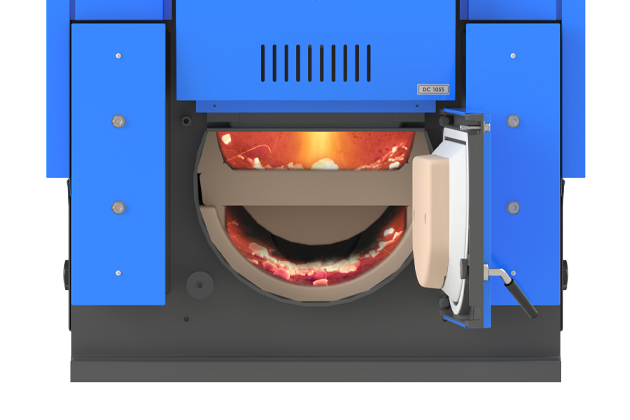

| Description of the boiler drawing | |||
|---|---|---|---|
| 1. | Boiler body | 24. | Fan thermostat 2 (boiler) |
| 2. | Filling door – upper | 25. | Door panel – Sibral – big |
| 3. | Ashtray door – lower | 26. | Door seal – cord 18 x 18 |

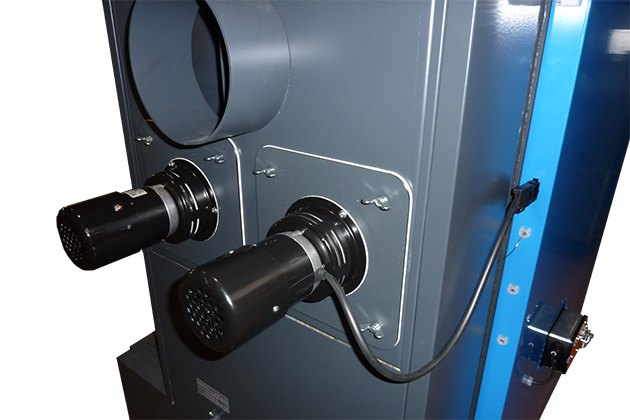

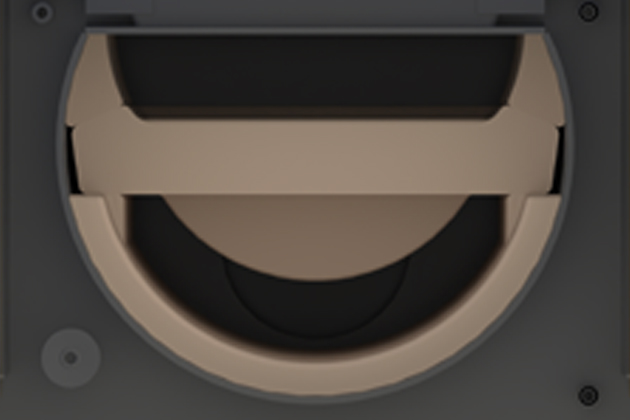

| 4. | Extraction fan (J22RR552) – 2x | 27. | Cleaning lid |
| 5. | Heat-resistant fitting – nozzle | 28. | Waste gas thermostat |
| 6. | Control panel | 29. | Pump thermostat – 70 °C |
| 7. | Safety thermostat | 30. | Safety pump thermostat – 95 °C |
| 9. | Heat-resistant fitting – spherical space upper | 31. | Cooling loop against overheating |
| 10. | Heat-resistant fitting – spherical space lower | 32. | Capacitor – 2x |
| 11. | Heat-resistant fitting – half-moon | 33. | Flue gas brake in the flue – 2x |
| 12. | Shield of the primary air – 2x | 34. | Belimo actuator |
| 13. | Firing up valve | 35. | Flue gas brake – in tubesheets – 4x |
| 14. | Aperture frame | 36. | Secondary air regulation |
| 15. | Tube sheet cover | ||
| 17. | Fire valve stem | K | – the flue-gas duct neck |
| 18. | Thermometer | L | – the boiler water outlet |
| 19. | Fan thermostat 1 (boiler) | M | – the boiler water inlet |
| 20. | Switch | N | – filling valve pipe sleeve |
| 21. | Modul AD03 – 2x | P | – sleeve for a sensor of the valve which regulates the cooling loop |
| 22. | Door handle | S | – spare output (such as for an expansion tank or a water heater) |
| 23. | Filling valve | R | – spare output (such as for an expansion tank or a water heater) |
| Boiler type | DC105S | |
| Boiler heat output | kW | 105 |
| Boiler thermal input | kW | 115,6 |
| Heating surface | m2 | 7,6 |
| Fuel shaft volume | dm3 (l) | 300 |

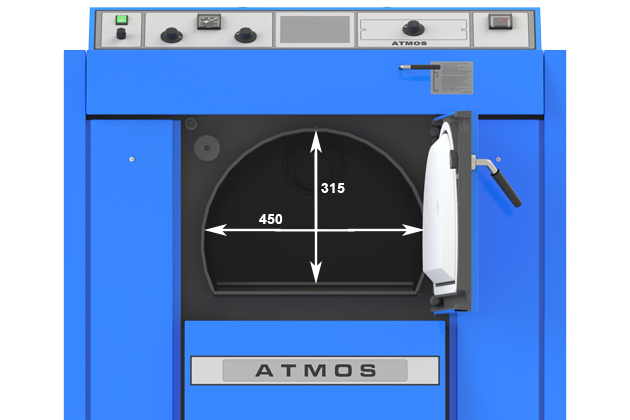

| Feeding hole dimensions | mm | 450 x 315 |
| Prescripted chimney draft | Pa/mbar | 25/0,25 |

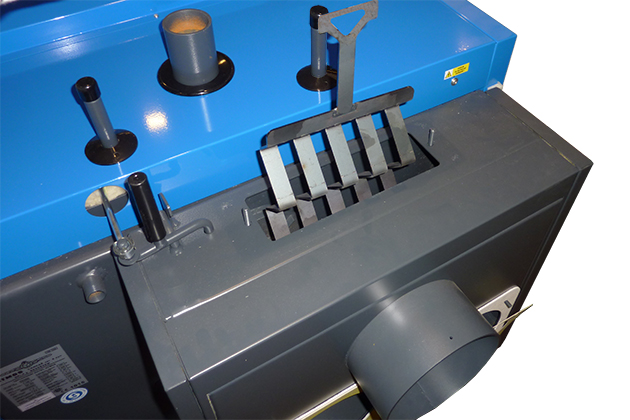

| Max. operating water-pressure | kPa/bar | 250/2,5 |
| Boiler weight | kg | 901 |
| Gas-outlet pipe diameter | mm | 200 |
| Electric parts ingress protection | IP | 20 |
| Electrical power input (auxiliary) | W | 185 |
| Electrical input in standby mode | W | 0 |
| Ignition mode | manual | |
| Efficiency over the entire performance range | % | 90,8 |
| Boiler class | 5 | |
| Boiler category | 1 | |
| Operating mode | non-condensing | |
| Solid fuel boiler with cogeneration unit | no | |
| Combined device also for heating of DHW | no | |
| Energy efficiency class | A+ | |
| Flue gas temperature at rated power | °C | 172 |
| Waste gas combustion products flow weight at nominal output | kg/s | 0,053 |
| Specified fuel (preffered) | Dry wood (logs) with a calorific value of 15 – 17 MJ.kg-1, diameter 80 – 120 mm and with a humidity of 12 – 20 % | |
| Average fuel consumption | kg.h-1 | 28 |
| Average consumption for the heating season | 1 kW = 1 m3 | |
| Prescribed wood length | mm | 550 |
| Combustion time at nominal output | hours | 2 |
| The volume of water in the boiler | l | 265 |
| Hydraulic pressure drop | mbar | 0,27 |
| Equalising tank minimum volume | l | 1000 |
| Connecting voltage | V/Hz | 230/50 |
| Dimensions (mm) | DC105S |
| A | 1813 |
| B | 1010 |
| C | 1095 |
| D | 1459 |
| E | 200 |
| F | 129 |
| G | 721 |
| H | 492 |
| I | 307 |
| J | 2″ |
