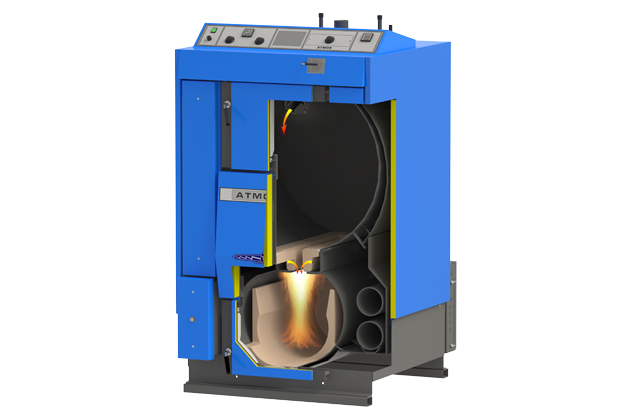

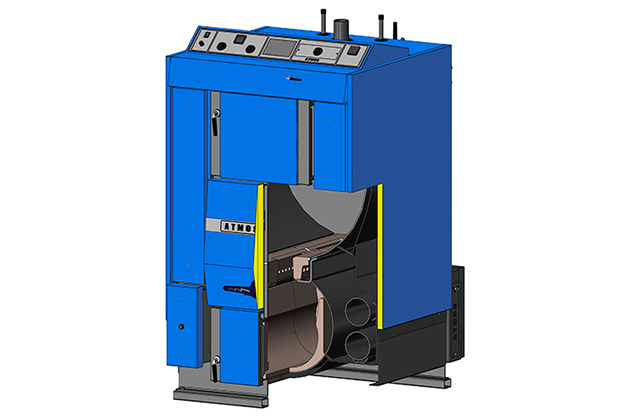

DC100 – Specifications
 |
 |
Rated power 99 kW |
 |
Boiler efficiency 89 % | |
 |
Emission class nr. 5 (Ecodesign) | |
 |
Log lenght 730 mm |

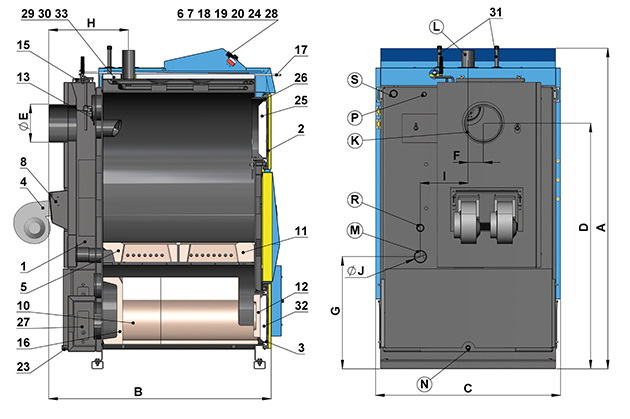

| Description of the boiler drawing | |||
|---|---|---|---|
| 1. | Boiler body | 24. | Fan thermostat 2 (boiler) |
| 2. | Filling door – upper | 25. | Door panel – Sibral – big |
| 3. | Ashtray door – lower | 26. | Door seal – cord 18 x 18 |
| 4. | Exhaust fan (S) | 27. | Cleaning lid |
| 5. | Heat-resistant fitting – rear nozzle | 28. | Waste gas thermostat |
| 6. | Control panel | 29. | Pump thermostat – 70 °C |
| 7. | Safety thermostat | 30. | Safety pump thermostat – 95 °C |
| 8. | Control flap | 31. | Cooling loop against overheating |
| 10. | Heat-resistant fitting – spherical space L + R | 32. | Door panel – Sibral – small – thin |
| 11. | Heat-resistant fitting – front nozzle | 33. | Capacitor – 3 μF |
| 12. | Heat-resistant fitting – half-moon | ||
| 13. | Firing up valve | ||
| 15. | Cleaning lid | K | – the flue-gas duct neck |
| 16. | Heat-resistant fitting – rear part of spherical space | L | – the boiler water outlet |
| 17. | Fire valve stem | M | – the boiler water inlet |
| 18. | Thermometer | N | – filling valve pipe sleeve |
| 19. | Fan thermostat 1 (boiler) | P | – sleeve for a sensor of the valve which regulates the cooling loop |
| 20. | Switch | S | – spare output (such as for an expansion tank or a water heater) |
| 23. | Filling valve | R | – spare output (such as for an expansion tank or a water heater) |
| Boiler type | DC100 | |
| Boiler heat output | kW | 99 |
| Boiler thermal input | kW | 108,8 |
| Heating surface | m2 | 7 |
| Fuel shaft volume | dm3 (l) | 400 |
| Feeding hole dimensions | mm | 450 x 315 |
| Prescripted chimney draft | Pa/mbar | 35 |
| Max. operating water-pressure | kPa/bar | 250 |
| Boiler weight | kg | 820 |
| Gas-outlet pipe diameter | mm | 200 |
| Electric parts ingress protection | IP | 20 |
| Electrical power input (auxiliary) | W | 100 |
| Electrical input in standby mode | W | 0 |
| Ignition mode | manual | |
| Efficiency over the entire performance range | % | 89 |
| Boiler class | 5 | |
| Boiler category | 1 | |
| Operating mode | non-condensing | |
| Solid fuel boiler with cogeneration unit | no | |
| Combined device also for heating of DHW | no | |
| Energy efficiency class | A+ | |
| Flue gas temperature at nominal output | °C | 220 |
| Waste gas combustion products flow weight at nominal output | kg/s | 0,050 |
| Specified fuel (preffered) | Dry wood (logs)with a calorific value of 15 – 18 MJ / kg-1, water content 12 – 20 %, diameter 80 – 120 mm | |
| Average fuel consumption | kg.h-1 | 26 |
| Average consumption for the heating season | 1 kW = 1 m3 | |
| Prescribed wood length | mm | 730 |
| Combustion time at nominal output | hod. | 4 |
| The volume of water in the boiler | l | 294 |
| Hydraulic pressure drop | mbar | 0,27 |
| Equalising tank minimum volume | l | 1000 |
| Connecting voltage | V/Hz | 230/50 |
| Dimensions (mm) | DC100 |
| A | 1690 |
| B | 1170 |
| C | 970 |
| D | 1290 |
| E | 200 |
| F | 80 |
| G | 590 |
| H | 420 |
| I | 330 |
| J | 2″ |
