Connection of boilers ATMOS F12 Laddomat

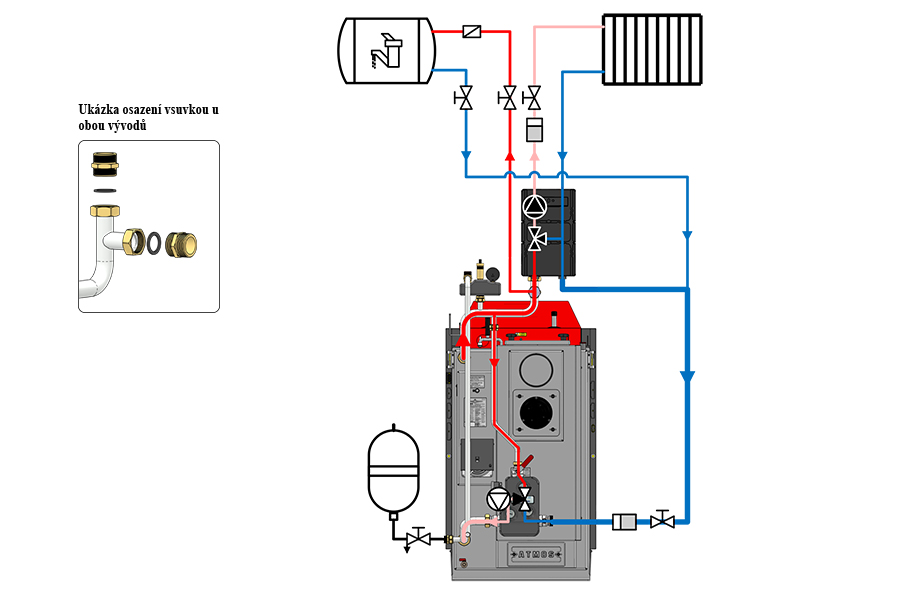

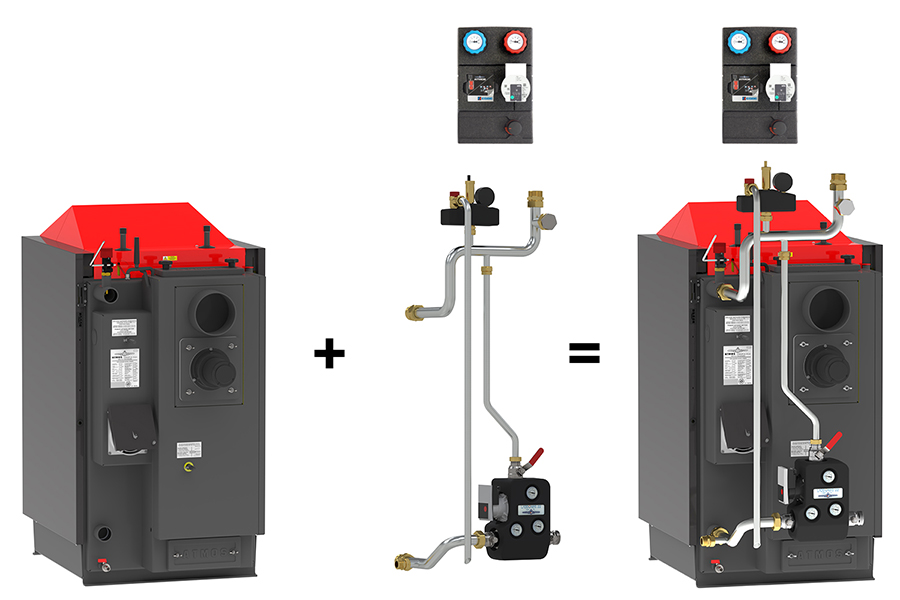

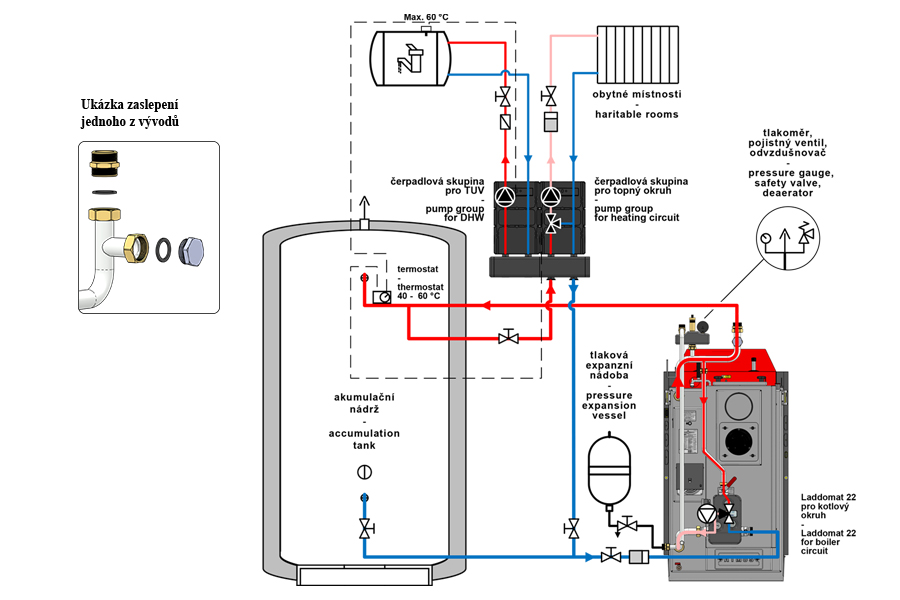

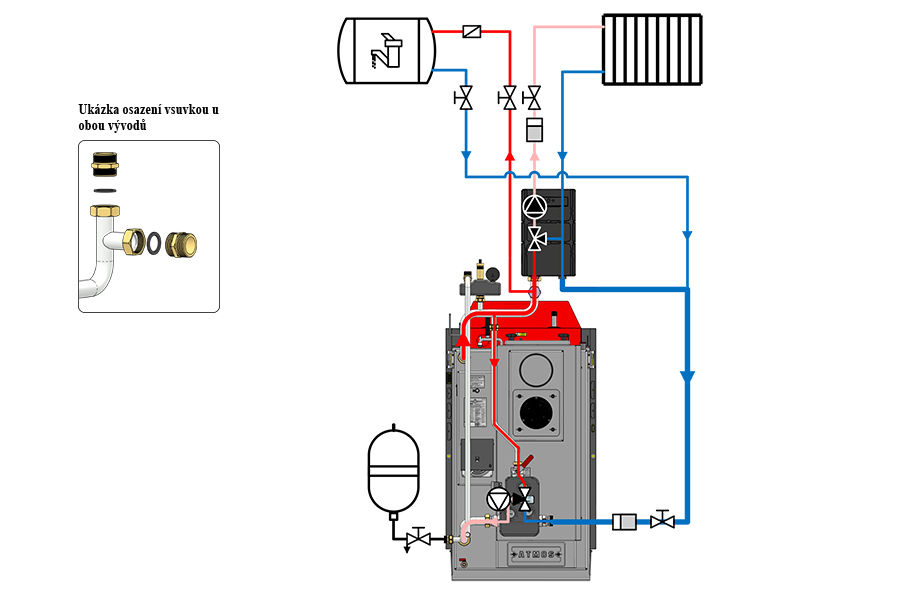

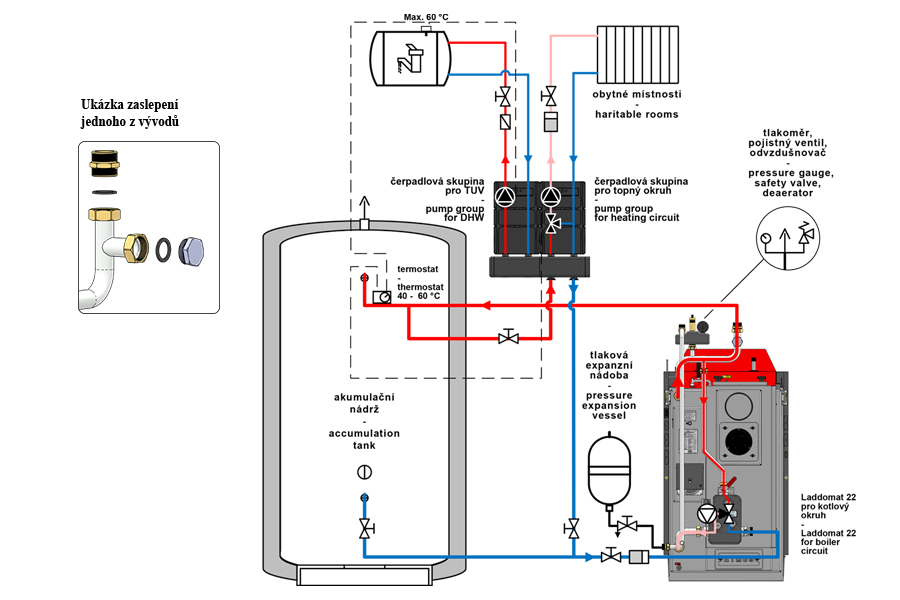

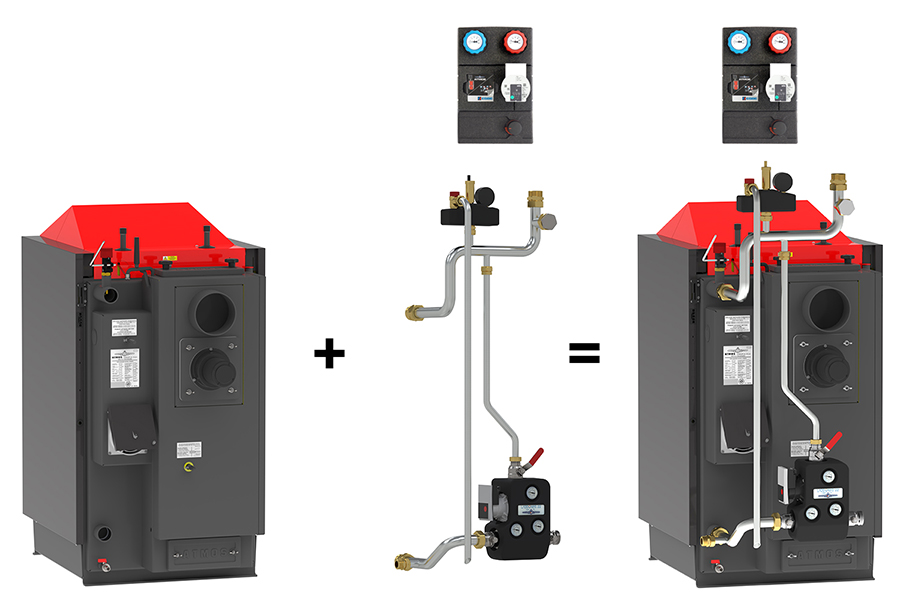

Professional stainless steel connection based on 35 × 1.5 mm diameter pipe, designed to maintain a minimum temperature of return water to the boiler and quickly connect the boiler using two 6/4“ flat seal fittings. The connection includes all the necessary components required by the manufacturer (safety valve 2.5 bar, vent valve, manometer, Laddomat 22, set of pipes for different variants of boilers and unconnected separate pump group ESBE type GRA211 with manually operated three-way valve and pump. The connection is ready to connect the boiler directly to the heating system or to connect the boiler to accumulation tanks.
In the case of a larger heating system, the connection can be extended to two or three heating circuits by purchasing a special distributor and the necessary pump group.
This set contains four pipes of different lengths allowing installation on different types of ATMOS boilers.
Click HERE for more information
