Pellet tanks

The tanks serve as pellet hoppers for automatic pellet boilers. They allow great variability of location in the boiler room and, last but not least, increase the comfort of the boiler operator

Standard tanks

The tanks serve as pellet hoppers for automatic pellet boilers. They allow great variability of location in the boiler room.They are produced in three basic sizes: 250 l, 500 l and 1000 l.

Pellet tank 250 l
Red
order code: H0204
Blue
order code: H0214
This is the smallest size, which is suitable for boilers up to 25 kW in the case of a small boiler room, where we can not use a larger volume of pellet tank.
There is 163 kg of pellets, ie approx. 730 kWh, are stored in this tank.



Pellet tank 500 l
Red
order code: H0201
Blue
order code: H0202
This is a medium size, which is ideal for boilers up to 40 kW.
There is 325 kg of pellets, ie approx. 1463 kWh, are stored in this tank.



Pellet tank 1000 l
Red
order code: H0047
Blue
order code: H0046
This is the largest size that is ideal for use for boilers up to 80 kW.
There is 650 kg of pellets, ie approx. 2925 kWh, are stored in this tank.

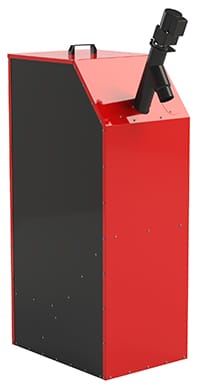

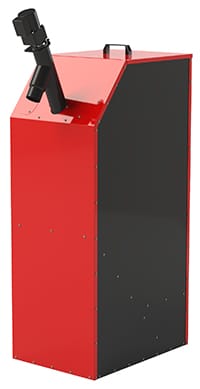

Compact pellet tanks with conveyor

It is a set of pellet tank with a volume of 240 l / 300 l / 400 l with the DRA25 conveyor, which is designed for small and cramped boiler rooms. Allows the tank to be placed in close proximity to the boiler so that the assembly takes up little space.

AZPD set designed for pellet boilers DxxP, DCxxSP(X)(T), CxxSP
Set AZPD 240 R (red)
Length 1.3 m (gearbox 25 W)
order code: H0283
Set AZPD 240 B (blue)
Length 1.3 m (gearbox 25 W)
order code: H0284
The 156 kg of pellets, ie approx. 700 kWh, are stored in a tank with a useful volume of 240 l. (10 bags / 15 kg)



AZPD set designed for pellet boilers DxxP, DCxxSP(X)(T), CxxSP
Set AZPD 300 R Design (red)
Length 1.3 m (gearbox 25 W)
order code: H0321
Set AZPD 300 B Design (blue)
Length 1.3 m (gearbox 25 W)
order code: H0322
The 195 kg of pellets, ie approx. 880 kWh, are stored in a tank with a useful volume of 300 l. (13 bags / 15 kg)



AZPD set designed for pellet boilers DxxP, DCxxSP(X)(T), CxxSP
Set AZPD 400 R Design (red)
Length 1.3 m (gearbox 25 W)
order code: H0445
Set AZPD 400 B Design (blue)
Length 1.3 m (gearbox 25 W)
order code: H0446
The 260 kg of pellets, ie approx. 1,170 kWh, are stored in a tank with a useful volume of 400 l. (17 bags / 15 kg)



AZPU set designed for gasification boilers with modification for pellet burner
Set AZPU 240 C (red)
Length 1.7 m (gearbox 25 W)
order code: H0280
Set AZPU 240 M (blue)
Length 1.7 m (gearbox 25 W)
order code: H0281
The 156 kg of pellets, ie approx. 700 kWh, are stored in a tank with a useful volume of 240 l. (10 bags / 15 kg)



AZPU set designed for gasification boilers with modification for pellet burner
Sada AZPU 400 C Design (red)
Length 1.7 m (gearbox 25 W)
order code: H0447
Sada AZPU 400 M Design (blue)
Length 1.7 m (gearbox 25 W)
order code: H0448
The 260 kg of pellets, ie approx. 1,170 kWh, are stored in a tank with a useful volume of 400 l. (17 bags / 15 kg)

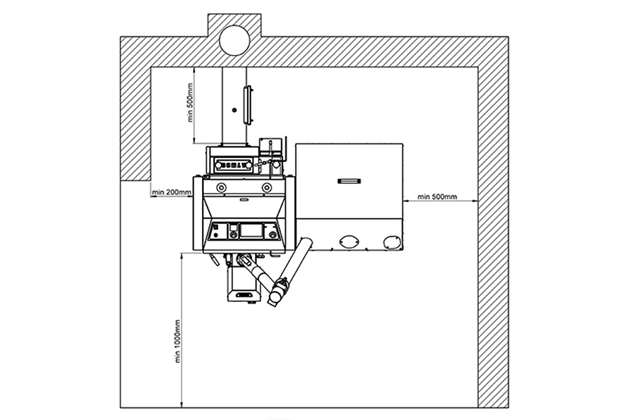

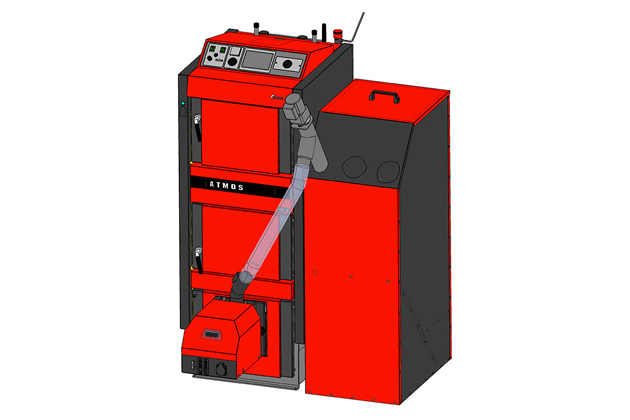

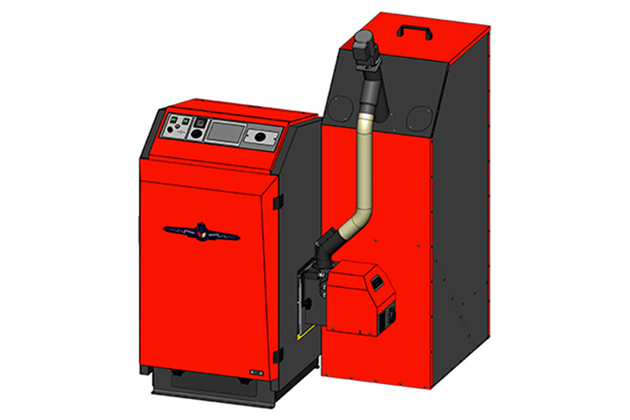

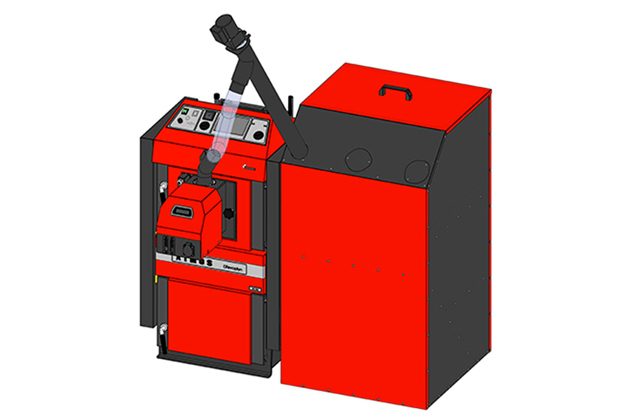

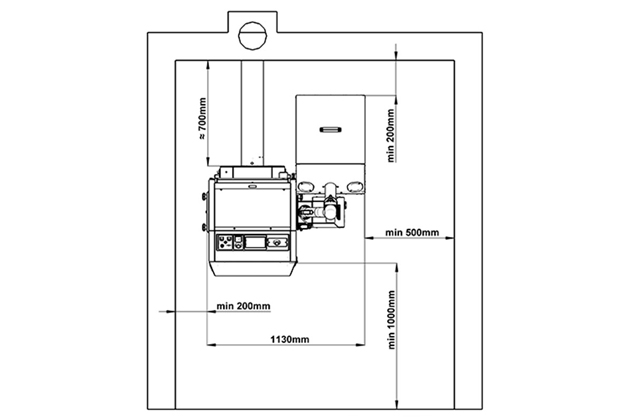

Example of installation of compact pellet hoppers

Extension for increasing the volume of the DxxPX boiler pellet tank

D10PX
Height extension 200 mm (45 l)
order code: S1343
Height extension 300 mm (68 l)
order code: S1344



D15PX, D20PX
Height extension 200 mm (65 l)
order code: S1233
Height extension 300 mm (95 l)
order code: S1234



D25PX
Height extension 200 mm (90 l)
order code: S1315
Height extension 300 mm (135 l)
order code: S1316

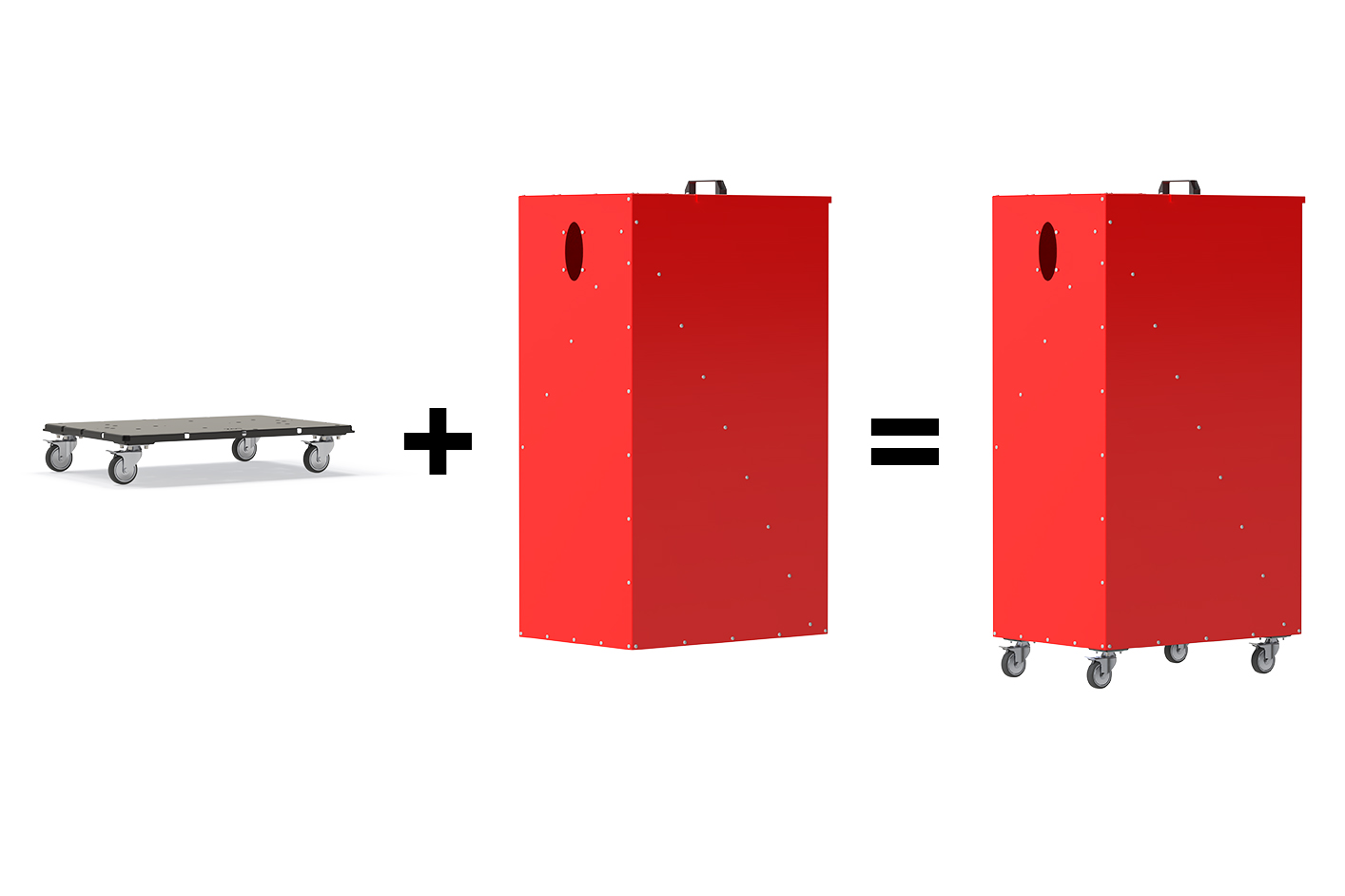

Set of wheels with a base plate under ATMOS pellet tanks

The ATMOS ASK wheel set with a base plate under pellet tanks facilitates the handling of the pellet hopper in the boiler room. The wheels are attached to a 3 mm thick base plate and swivel 360°. To prevent unwanted movement, they are equipped with a brake to keep the hopper firmly in place (taut conveyor hose). Variants are available for pellet hoppers with capacities of 240, 250, 300, 400, and 500 l. Installing the base plate with wheels increases the tank height by 108 mm.


ASK 240

designed for:
set of compact tanks with conveyor AZPD 240 R (red)
set of compact tanks with conveyor AZPD 240 B (blue)
set of compact tanks with conveyor AZPU 240 C (red)
set of compact tanks with conveyor AZPU 240 M (blue)

ordering code: S1834

ASK 250

designed for:
pellet tank 250 l

ordering code: S1835

ASK 300

designed for:
set of compact tanks with conveyor AZPD 300 R Design (red)
set of compact tanks with conveyor AZPD 300 B Design (blue)

ordering code: S1836

ASK 400

designed for:
set of compact tanks with conveyor AZPD 400 R (red)
set of compact tanks with conveyor AZPD 400 B (blue)
set of compact tanks with conveyor AZPU 400 C (red)
set of compact tanks with conveyor AZPU 400 M (blue)

ordering code: S1837

ASK 500

designed for:
pellet tank 500 l

ordering code: S1838
