As an accessory to each DxxP pellet boiler, which was manufactured after March 1, 2007, it is possible to purchase automatic ash removal from the boiler body to an additional external ashtray. This automatic ash removal device does not require any special operation and increases the comfort of heating with pellets.

Ash removal takes place completely automatically by means of a worm conveyor with a gearbox, which removes ash from the chamber under the burner at regular intervals after 1, 3, 6, 12 or 24 hours, depending on the settings for the specific fuel. If necessary, the automatic ash removal can also be switched on manually by simply switching off and on the switch on the boiler. We choose the size of the ashtray after careful consideration based on the ash content of the fuel.

When the additional ashtray is completely filled, the ash removal device (auger) is automatically shut down and the ash removal module starts to emit an audible signal. We will perform a new commissioning after cleaning the external ashtray (take it out) by simply switching off and on the switch on the boiler for 5 to 10 seconds.

Ash removal equipment

– without additional ashtray

Additional ashtrays

for boilers D14P, D21P, D25P, D31P, D15P, D20P, D30P, D40P, D50P (red)

Type – Code

Small – volume 18 l – S1229
Design 2017 – recommended size for boilers D14P, D21P, D25P, D31P (boilers with front cover) when burning quality wood pellets. Ash collection interval once every 14-30 days.

Small – volume 28 l – S0542
Recommended size for boilers D15P, D20P when burning quality wood pellets. Ash collection interval once every 14 – 35 days.

Medium – volume 68 l – S0544
Recommended size for boilers D15P, D20P, D30P, D40P, D50P when burning quality wood pellets. Ash collection interval once every 14 – 40 days.

Large – volume 135 l – S0546
Recommended size for the D50P boiler when burning pellets with higher ash content. Ash collection interval once every 14 – 50 days.

For boiler D80P

Type – Code

Mediium – volume 68 l – S1068
Designed only for the D80P boiler – for a screw diameter of 80 mm.

Large – volume 135 l – S1069
Designed only for the D80P boiler – for a screw diameter of 80 mm.

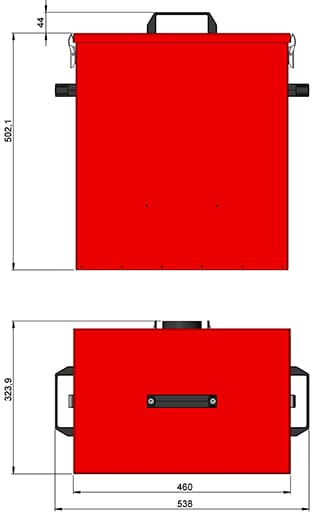

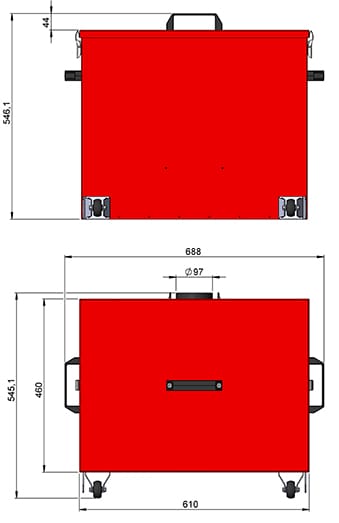

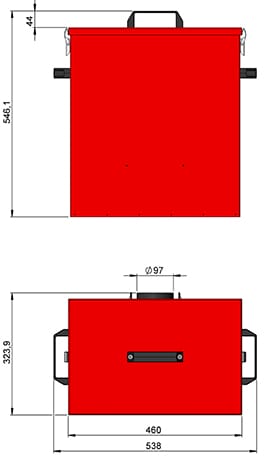

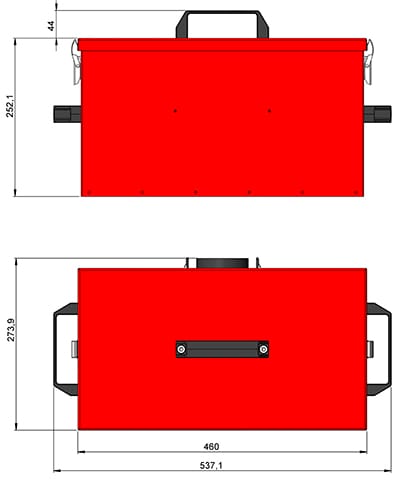

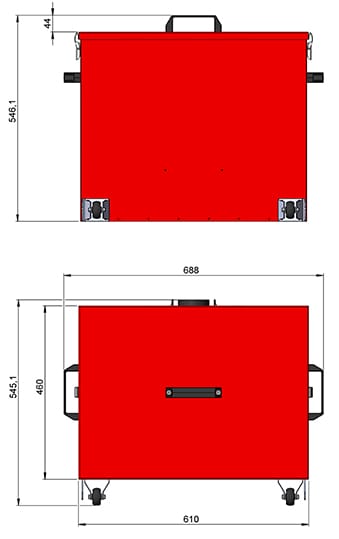

Dimensions of additional ashtrays

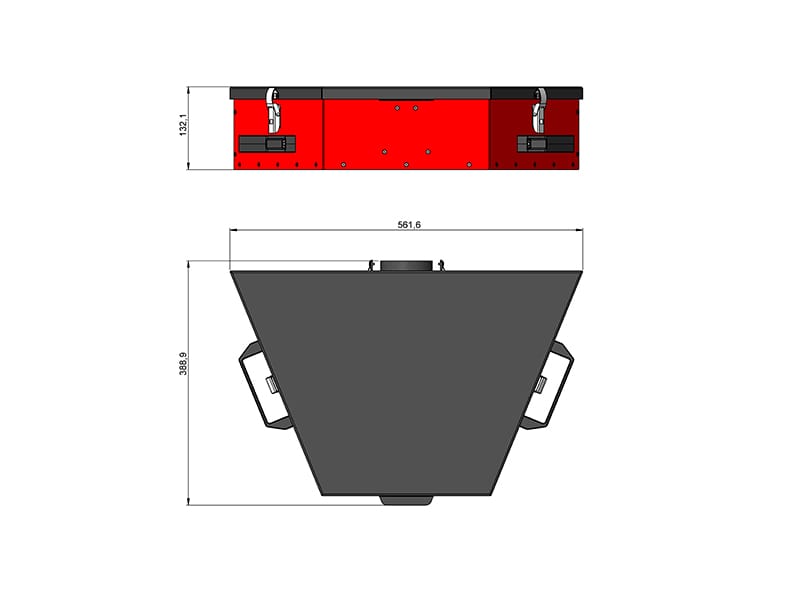

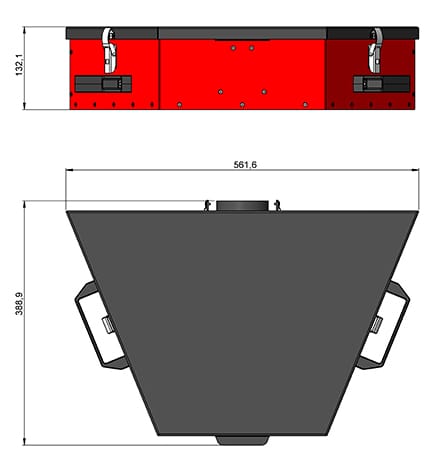

Ash collector 18L

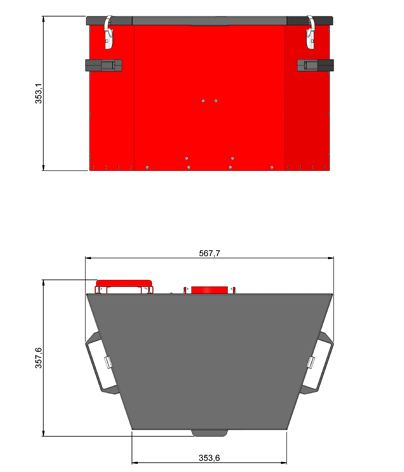

Ash collector 28L



Ash collector 68L



Ash collector 135L

Ash collector 68L D80P



Ash collector 135L D80P

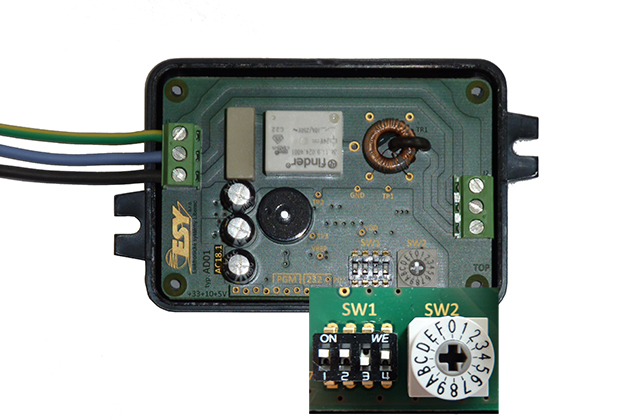

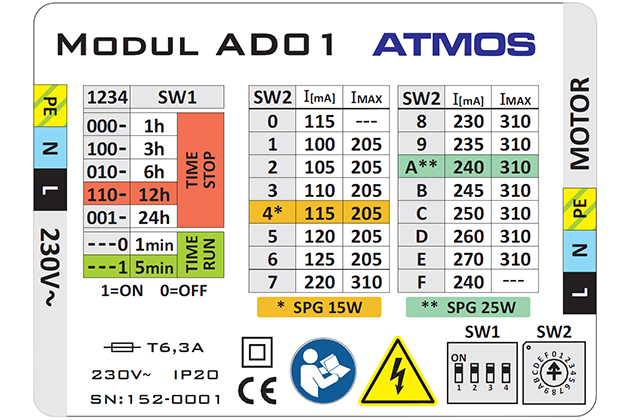

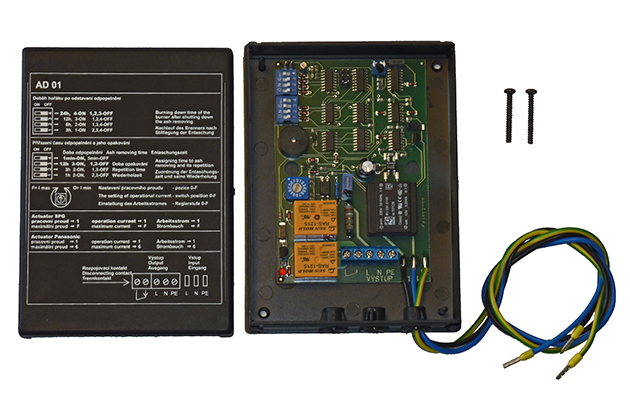

Ash removal module AD01

The module is located under the hood of the boiler and allows you to set the length and frequency of ash removal.
