| Name | Product designation Order Code |
|
| Equithermal controller with touch screen and relay module – complete (A + B with connectors) – separate |
ATMOS ACD 03 code: P0466 |
 |
| Connector set – for ATMOS ACD regulation 03/04 |
SCS34 code: S0105 |
 |
| Room unit (sensor) – passive room temperature sensor – for wired connection |
ATMOS ARU5 code: P0471 |
 |
| Room unit (sensor) – passive room temperature sensor – for wireless connection – for all ACD 03/04 controllers – power supply – 2x AA alkaline batteries |
ATMOS ARU5W code: P0472 |
|
| Room unit without display – for wired connection – for all ACD 03/04 controllers |
ATMOS ARU10 code: P0473 |
 |
| Room unit without display – for wireless connection – for all ACD 03/04 controllers – power supply – 2x AA alkaline batteries |
ATMOS ARU10W code: P0474 |
|
| Room unit with touch screen – for wired connection – for all ACD 03/04 controllers |
ATMOS ARU30 code: P0475 |
 |
| Room unit with touch screen – for wireless connection – for all ACD 03/04 controllers |
ATMOS ARU30W code: P0476 |
|
| ATTENTION – To connect the second and third room unit ARU30 or wireless connection of room units ARU30W, it is necessary to purchase a 12 V power supply DE06-12 or MEAN WELL GS06E-3P1J | ||
| POWER SUPPLY 12 V DE06-12 – room unit power supply ARU30(W) (into the wallbox KU 68) |
DE06-12 code: P0488 |
 |

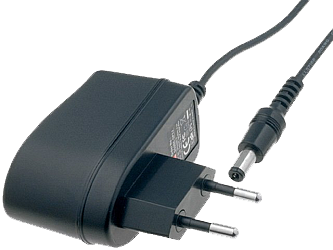

| MEAN WELL GS06E-3P1J – room unit adapter (power supply) ARU30(W) (to plug-in 230V/50Hz) |
MEAN WELL GS06E-3P1J code: P0484 |
 |
| Box for installing ACD 03 control on the wall – metallic (white or dark grey variant) |
ATMOS SWS 18 code: P0483 – white code: P0486 – dark grey |
 |
| Wireless Ethernet / Wi-Fi gateway ATMOS WIFI GATE 1000 – for communication of ACD03 / 04 control with external devices (computer, mobile phone) and around the building (room units, sensors) |
ATMOS WIFI GATE 1000 code: P0481 |
comming soon |
| Name | Product designation Order Code |
The cable length | Measuring range | |
| Outdoor temperature sensor (AF) – wired |
AF20-B65 code: P0409 |
0 m | -40 … +70 |  |
| Outdoor temperature sensor (AF) – wireless (only for ACD03/04 with WR 500 or WIFI GATE 1000) |
ATMOS AFW code: P0470 |
0 m | -40 … +70 |  comming soon |
| Boiler temperature sensor (WF) – silikon |
KTF20-65-2M code: P0410 |
2 m | -20 … +110 |  |
| DHW temperature sensor (SF) or accumulation tank (PF) – PVC | KTF20-65-5M-B code: P0431 |
5 m | -20 … +110 | |
| Contact sensor of the heating system (VF) – without cable |
SF20-B54 code: P0411 |
0 m | 0 … +110 |  |
| Contact sensor of the heating system (VF) – wired – PVC |
SF20-B54 code: P0417 |
4 m | 0 … +110 |  |
| Flue gas sensor for boiler operation control (AGF) | AGF3 code: P0413 |
2 m | 0 … +110 |  |
| Solar panel sensor and flue gas sensor to control boiler operation (AGF) | VFF00-75P65 code: P0414 |
2,5 m | -20 … +300 |  |
| PVC shielded cable – double line (sensors, units – SDW10/20, AFW, ARU5(W)) |
code: S0636 | price for 1 m. see price list | – |  |
| Silicone shielded cable – double line (sensors, units – SDW10/20, AFW, ARU5(W)) |
code: S0637 | price for 1 m. see price list | – |  |
| PVC shielded cable – four-wire (units ARU10(W)/30(W)) |
code: S0659 | price for 1 m. see price list | – | |
| Spiral tape for organising cables | code: S0270 | price for 1 m. see price list | – |  |
| Tin socket for connecting wires (to extend sensors) | code: P0445 | – | – |  |
| CO ALARM – 230VAC, backup battery, output relay, replaceable sensor element | SF340F code: S0087 |
– | – |  |
| Detachable sensor element for CO ALARM SF340F | SF340M code: S0089 |
– | – |
| Name and type | Code |
| ATMOS GT 100 – power supply for room unit ARU30 / ARU30W (in a box on the wall KU 68 – 230V / 50Hz) with one output relay 230V / 50Hz – the device allows direct (ON / OFF) control of the boiler room unit ARU30 / ARU30W (classic room thermostat function) |
P0477 |
| ATMOS GT 300 – power supply / room unit module ARU30 / ARU30W (in a plastic installation box on the wall) with four relays 230V / 50Hz, the device allows direct (wired) control of one heating circuit (servo drive + pumps + heat sources) room unit ARU30 / ARU30W (equithermal controller function) – the source is equipped with five temperature inputs (boiler temperature WF + heating system sensor VF + upper storage tank sensor PF + lower storage tank sensor KSPF + outdoor sensor AF) |
P0478 |
| Equithermal controller with touch screen ATMOS ACD 03A – without relay module – alone without connectors |
P0463 |
| Equithermal controller with touch screen ATMOS ACD 04A – without relay module – alone without connectors |
P0464 |
| ATMOS ACD 03/04-B equithermal control relay module – alone without connectors |
P0465 |
| ASF 2018 sensor set (P0409 – 1 pc, P0417 – 3 pcs, P0410 – 1 pc, P0431 – 3 pcs) (without flue gas sensor and with outdoor sensor AF20-B65) |
P0461 |
| Sensor set AGSF 2018 (P0413 – 1 pc, P0409 – 1 pc, P0417 – 3 pcs, P0410 – 1 pc, P0431 – 3 pcs) (with flue gas sensor AGF3 and with outdoor sensor AF20-B65) |
P0468 |
| Sensor set ASFW 2018 (P0417 – 3 pcs, P0410 – 1 pc, P0431 – 3 pcs) (without flue gas sensor and without outdoor sensor) |
P0462 |
| Sensor set AGSFW 2018 (P0413 – 1 pc, P0417 – 3 pcs, P0410 – 1 pc, P0431 – 3 pcs) (with AGF3 flue gas sensor and without outdoor sensor) |
P0469 |
