Advantages of ATMOS gasification boilers for lignite briquettes and hard coal
- Large fuel tank – long burning time
- High efficiency – primary and secondary air is preheated to a high temperature
- Ecological combustion – boiler according to EN 303-5:2012 class 5, EKODESIGN 2015/1189
- Exhaust fan – dust-free ash removal, smoke-free boiler room
- Cooling loop against overheating – without the risk of damaging the boiler
- Automatic shutdown of the boiler after the fuel burns out – flue gas thermostat
- Convenient ash removal – large ceramic combustion chamber for ash
- Small size and low weight
- Choice of door left / right
- High Quality
Installation
ATMOS boilers must be connected via the LADDOMAT 22 or thermoregulation valve (three-way valve controlled by an actuator in case of using electronic control ATMOS ACD 03) to achieve and keeping the minimum temperature of water returning to boiler at 65 °C. The temperature of water exiting the boiler must be permanently kept between 80 – 90 °C.
The default configuration of all boilers includes a cooling loop to prevent overheating. We recommend to install boilers with accumulation tanks.

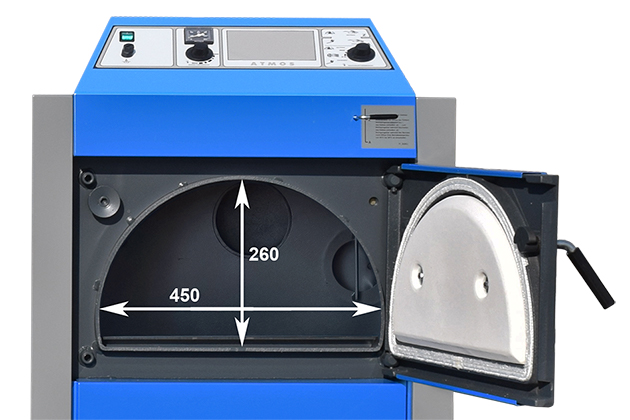

- Filling hole dimensions
- View of top feeding chamber
- Lower combustion chamber with flame
- View of bottom feeding chamber
- Exhaust fan and flue gas neck
- Boiler upper cleaning lid
Boilers regulation
Electromechanical – Power is controlled with a safety valve operated with the draught regulator, FR 124 type, which automatically opens or closes the safety valve according to a set output temperature of water (80 – 90 °C). When setting the power regulator, much attention should be paid because the regulator has another important function other than power regulation – it also secures the boiler against overheating. A controlling thermostat located on the boiler panel regulates the fan according to a set temperature (80 – 85 °C). A temperature lower by 5 °C should be set on the controlling thermostat rather than on the FR 124 draught regulator. Boilers contain waste gas thermostat which serves to stop the suction fan when the boiler burns down. The boilers work for 70 % without the fan on.
- Regulating air flap
- Overheating protection cooling loop
Panel composition:
Main off switch, safety thermostat, thermometer, regulator thermostat and combustion thermostat
Electro-mechanical regulation is an optimum solution for easy management of the operation of the boiler (ventilator).
The design of the panel with standard regulation is a basic design for all produced boilers.
Equithermal regulation ACD 03
Each boiler can be equipped with a modern touch electronic control ATMOS ACD 03 for controlling the entire heating system depending on the outdoor temperature, room temperature and time. This regulation is able to control the boiler itself with a fan with many other functions.
Technical details
Description of the boiler drawing | |||
1. | Boiler body | 22. | Draught regulator – HONEYWELL FR124 |
2. | Filling door – upper | 23. | Heat-resistant fitting – front cube |
3. | Ashtray door – lower | 24. | Fan control (boiler) thermostat |
4. | Exhaust fan (S) | 25. | Door panel – Sibral – thin (32 mm) |
5. | Heat-resistant fitting – rear cube | 26. | Door seal – cord 18 x 18 |
6. | Control panel | 27. | Flue gas brake (AC25S) |
7. | Safety thermostat | 30. | Flue gas thermostat |
8. | Control flap | 31. | Capacitor for exhaust fan – 1μF |
9. | Grate (segment) | 32. | Cooling loop against overheating |
10. | Heat-resistant fitting – spherical space | 33. | Primary air regulation |
11. | Grate pipe | 34. | Secondary air regulation |
12. | Heat-resistant fitting – half-moon | 37. | Flue gas break – four-armed (AC25S) |
13. | Firing up valve | ||
14. | Heat-resistant fitting – rear part of spherical space | ||
15. | Cleaning lid | ||
16. | Grate lever | K | – the flue-gas duct neck |
17. | The rod for firing up flap | L | – water outlet from the boiler |
18. | Thermometer | M | – water inlet to the boiler |
19. | Frame shield | N | – filling valve pipe sleeve |
20. | Switch with an indicator light | P | – socket for the sensor of the valve controlling the cooling loop (TS 131, STS 20) |
Boiler dimensions (mm) | ||
AC16S | AC25S | |
A | 1166 | 1185 |
B | 658 | 758 |
C | 593 | 675* |
D | 874 | 874 |
E | 150/152 | 150/152 |
F | 65 | 65 |
G | 210 | 210 |
H | 933 | 933 |
CH | 212 | 212 |
I | 212 | 212 |
J | 6/4″ | 6/4″ |
Specifications | The boiler type | ||
AC16S | AC25S | ||
Boiler heat output | kW | 18 | 26 |
Boiler thermal input | kW | 20,3 | 28,8 |
Heating surface | m2 | 1,6 | 1,9 |
Fuel shaft volume | dm3 (l) | 45 | 60 |
Filling hole dimensions | mm | 450 x 260 | 450 x 260 |
Prescripted chimney draft | Pa/mbar | 16/0,16 | 20/0,20 |
Max. working water overpressure | kPa/bar | 250/2,5 | 250/2,5 |
Boiler weight | kg | 273 | 297 |
Gas-outlet pipe diameter | mm | 150/152 | 150/152 |
Ingress protection of electric parts | IP | 20 | 20 |
Electrical power input (auxiliary) | W | 50 | 50 |
Electrical input in standby mode | W | 0 | 0 |
Ignition mode | manual | ||
Efficiency over the entire performance range | % | 88,5 | 90,4 |
Boiler class | 5 | 5 | |
Boiler category | 1 | ||
Operating mode | non-condensing | ||
Energy efficiency class | B | C | |
Waste gas temperature at nominal output | °C | 165 | 177,3 |
Waste gas combustion products flow weight at nominal output | kg/s | 0,010 | 0,015 |
Specified fuel (preffered) | lignite briquettes with calorific value 19 – 23 MJ/kg-1 | ||
Specified fuel | black coal ORECH 1 with calorific value 20 – 30 MJ/kg-1 | ||
Spare fuel (firing up) | dry wood with calorific value 15 – 17 MJ/kg-1, water content 12 – 20 %, size 80 – 150 mm | ||
Maximum wood length | mm | 250 | 330 |
Combustion time at nominal output | Hours | 4 | 4 |
The volume of water in the boiler | l | 37 | 45 |
Boiler hydraulic loss | mbar | 0,17 | 0,18 |
Minimum buffer tank volume | l | 500 | 500 |
Connecting voltage | V/Hz | 230/50 | 230/50 |
Ekodesign | ![]() |
![]() |
*the width of the boiler after removing the side hoods is 555 mm
